A Scenario run with constant fuel, weather, and topography. More...

Inheritance diagram for fs::sim::TestScenario:

[legend]

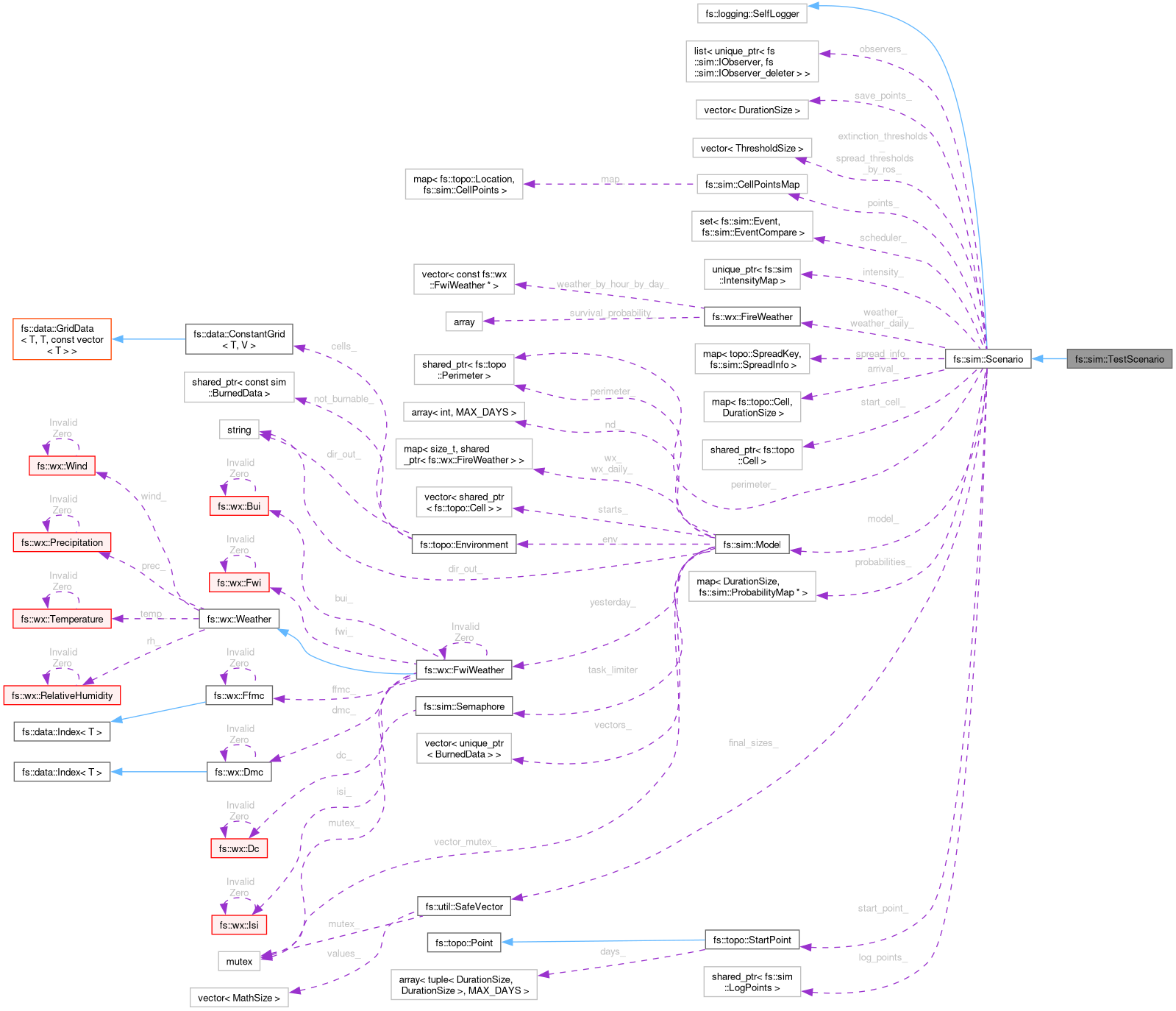

Collaboration diagram for fs::sim::TestScenario:

[legend]

Public Member Functions
	TestScenario (const TestScenario &rhs)=delete

	TestScenario (TestScenario &&rhs)=delete

TestScenario &	operator= (const TestScenario &rhs)=delete

TestScenario &	operator= (TestScenario &&rhs)=delete

	TestScenario (Model model, const shared_ptr< topo::Cell > &start_cell, const topo::StartPoint &start_point, const int start_date, const DurationSize end_date, wx::FireWeather weather)
	Constructor.

Public Member Functions inherited from fs::sim::Scenario
constexpr size_t	weightedDsr () const noexcept
	Weighted Danger Severity Rating.

	Scenario (Model model, size_t id, wx::FireWeather weather, wx::FireWeather *weather_daily, DurationSize start_time, const shared_ptr< topo::Perimeter > &perimeter, const topo::StartPoint &start_point, Day start_day, Day last_date)
	Constructor.

	Scenario (Model model, size_t id, wx::FireWeather weather, wx::FireWeather *weather_daily, DurationSize start_time, const shared_ptr< topo::Cell > &start_cell, const topo::StartPoint &start_point, Day start_day, Day last_date)
	Constructor.

	Scenario (Scenario &&rhs) noexcept
	Move constructor.

	Scenario (const Scenario &rhs)=delete

Scenario &	operator= (Scenario &&rhs) noexcept
	Move assignment.

Scenario &	operator= (const Scenario &rhs) const =delete

Scenario *	reset_with_new_start (const shared_ptr< topo::Cell > &start_cell, util::SafeVector *final_sizes)
	Assign start Cell, reset thresholds and set SafeVector to output results to.

Scenario *	reset (mt19937 mt_extinction, mt19937 mt_spread, util::SafeVector *final_sizes)
	Reset thresholds and set SafeVector to output results to.

void	burn (const Event &event)
	Burn cell that Event takes place in.

void	cancel (bool show_warning) noexcept

topo::Cell	cell (const Idx row, const Idx column) const
	Get Cell for given row and column.

template<class P >
constexpr topo::Cell	cell (const Position< P > &position) const
	Get Cell for given Location.

constexpr Idx	rows () const
	Number of rows.

constexpr Idx	columns () const
	Number of columns.

constexpr MathSize	cellSize () const
	Cell width and height (m)

constexpr int64_t	simulation () const
	Simulation number.

constexpr const topo::StartPoint &	startPoint () const
	StartPoint that provides sunrise/sunset times.

constexpr DurationSize	startTime () const
	Simulation start time.

constexpr size_t	id () const
	Identifier.

constexpr const Model &	model () const
	Model this Scenario is running in.

constexpr DurationSize	dayStart (const size_t for_day) const
	Sunrise time for given day.

constexpr DurationSize	dayEnd (const size_t for_day) const
	Sunset time for given day.

const wx::FwiWeather *	weather (const DurationSize time) const
	FwiWeather for given time.

const wx::FwiWeather *	weather_daily (const DurationSize time) const

constexpr int	nd (const DurationSize time) const
	Difference between date and the date of minimum foliar moisture content.

ThresholdSize	extinctionThreshold (const DurationSize time) const
	Get extinction threshold for given time.

ThresholdSize	spreadThresholdByRos (const DurationSize time) const
	Get spread threshold for given time.

constexpr bool	isAtNight (const DurationSize time) const
	Whether or not time is after sunrise and before sunset.

MathSize	minimumFfmcForSpread (const DurationSize time) const noexcept
	Minimum Fine Fuel Moisture Code for spread to be possible.

bool	isSurrounded (const Location &location) const
	Whether or not the given Location is surrounded by cells that are burnt.

template<class P >
bool	isSurrounded (const Position< P > &position) const

topo::Cell	cell (const InnerPos &p) const noexcept
	Cell that InnerPos falls within.

Scenario *	run (map< DurationSize, ProbabilityMap * > *probabilities)
	Run the Scenario.

void	scheduleFireSpread (const Event &event)
	Schedule a fire spread Event.

MathSize	currentFireSize () const
	Current fire size (ha)

bool	canBurn (const topo::Cell &location) const
	Whether or not a Cell can burn.

bool	hasBurned (const Location &location) const
	Whether or not Cell with the given hash can burn.

template<class P >
bool	hasBurned (const Position< P > &position) const

void	addEvent (Event &&event)
	Whether or not Location with given hash has burned already.

void	evaluateNextEvent ()
	Evaluate next Event in the queue.

void	endSimulation () noexcept
	End the simulation.

void	addSaveByOffset (int offset)
	Add a save point for simulation data at the given offset.

template<class V >
void	addSave (V time)
	Add a save point for simulation data at given time.

void	saveObservers (const string &base_name) const
	Tell Observers to save their data with base file name.

void	saveObservers (DurationSize time) const
	Tell Observers to save their data for the given time.

void	saveIntensity (const string &dir, const string &base_name) const
	Save burn intensity information.

bool	ran () const noexcept
	Whether or not this Scenario has run already.

bool	survives (const DurationSize time, const topo::Cell &cell, const DurationSize time_at_location) const
	Whether or not the fire survives the conditions.

vector< DurationSize >	savePoints () const
	List of what times the simulation will save.

void	saveStats (DurationSize time) const
	Save state of Scenario at given time.

void	registerObserver (IObserver *observer)
	Register an IObserver that will be notified when Cells burn.

void	notify (const Event &event) const
	Notify IObservers that a Cell has burned.

void	evaluate (const Event &event)
	Take whatever steps are necessary to process the given Event.

void	clear () noexcept
	Clear the Event list and all other data.

Additional Inherited Members
Static Public Member Functions inherited from fs::sim::Scenario
static size_t	completed () noexcept
	Number of Scenarios that have completed running.

static size_t	count () noexcept
	Number of Scenarios that have been initialized.

static size_t	total_steps () noexcept
	Total number of spread events for all Scenarios.

Protected Member Functions inherited from fs::sim::Scenario
string	add_log (const char *format) const noexcept override

	Scenario (Model model, size_t id, wx::FireWeather weather, wx::FireWeather *weather_daily, DurationSize start_time, const shared_ptr< topo::Perimeter > &perimeter, const shared_ptr< topo::Cell > &start_cell, topo::StartPoint start_point, Day start_day, Day last_date)
	Constructor.

Protected Member Functions inherited from fs::logging::SelfLogger
void	log_output (const int level, const char *format,...) const noexcept

void	log_extensive (const char *format,...) const noexcept

void	log_verbose (const char *format,...) const noexcept

void	log_debug (const char *format,...) const noexcept

void	log_info (const char *format,...) const noexcept

void	log_note (const char *format,...) const noexcept

void	log_warning (const char *format,...) const noexcept

void	log_error (const char *format,...) const noexcept

void	log_check_fatal (bool condition, const char *format,...) const

void	log_fatal (const char *format,...) const

Protected Attributes inherited from fs::sim::Scenario
list< unique_ptr< IObserver, IObserver_deleter > >	observers_ {}
	Observers to be notified when cells burn.

vector< DurationSize >	save_points_
	List of times to save simulation.

vector< ThresholdSize >	extinction_thresholds_ {}
	Thresholds used to determine if extinction occurs.

vector< ThresholdSize >	spread_thresholds_by_ros_ {}
	Thresholds used to determine if spread occurs.

DurationSize	current_time_
	Current time for this Scenario.

CellPointsMap	points_
	Map of Cells to the PointSets within them.

BurnedData *	unburnable_
	Contains information on cells that are not burnable.

set< Event, EventCompare >	scheduler_
	Event scheduler used for ordering events.

unique_ptr< IntensityMap >	intensity_
	Map of what intensity each cell has burned at.

shared_ptr< topo::Perimeter >	perimeter_
	Initial intensity map based off perimeter.

map< topo::SpreadKey, SpreadInfo >	spread_info_ {}
	Calculated SpreadInfo for SpreadKey for current time.

map< topo::Cell, DurationSize >	arrival_ {}
	Map of when Cell had first Point arrive in it.

MathSize	max_ros_
	Maximum rate of spread for current time.

shared_ptr< topo::Cell >	start_cell_
	Cell that the Scenario starts from if no Perimeter.

wx::FireWeather *	weather_
	Hourly weather to use for this Scenario.

wx::FireWeather *	weather_daily_
	Weather stream to use for spread and extinction probability.

Model *	model_
	Model this Scenario is being run in.

map< DurationSize, ProbabilityMap * > *	probabilities_
	Map of ProbabilityMaps by time snapshot for them was taken.

util::SafeVector *	final_sizes_
	Where to append the final size of this Scenario when run is complete.

topo::StartPoint	start_point_
	Origin of fire.

size_t	id_
	Identifier.

DurationSize	start_time_
	Start time (decimal days)

DurationSize	last_save_
	Which save point is the last one.

size_t	current_time_index_ = numeric_limits<size_t>::max()
	Time index for current time.

int64_t	simulation_
	Simulation number.

Day	start_day_
	First day of simulation.

Day	last_date_
	Last day of simulation.

bool	ran_
	Whether or not this Scenario has completed running.

bool	cancelled_ = false
	Whether this has been cancelled.

shared_ptr< LogPoints >	log_points_

size_t	step_
	How many times point spread event has happened.

size_t	oob_spread_
	How many times this scenario tried to spread out of bounds.

Detailed Description

A Scenario run with constant fuel, weather, and topography.

Constructor & Destructor Documentation

◆ TestScenario()

fs::sim::TestScenario::TestScenario	(	Model *	model,
		const shared_ptr< topo::Cell > &	start_cell,
		const topo::StartPoint &	start_point,
		const int	start_date,
		const DurationSize	end_date,
		wx::FireWeather *	weather )

inline

Constructor.

Parameters

model	Model running this Scenario
start_cell	Cell to start ignition in
start_point	StartPoint represented by start_cell
start_date	Start date of simulation
end_date	End data of simulation
weather	Constant weather to use for duration of simulation

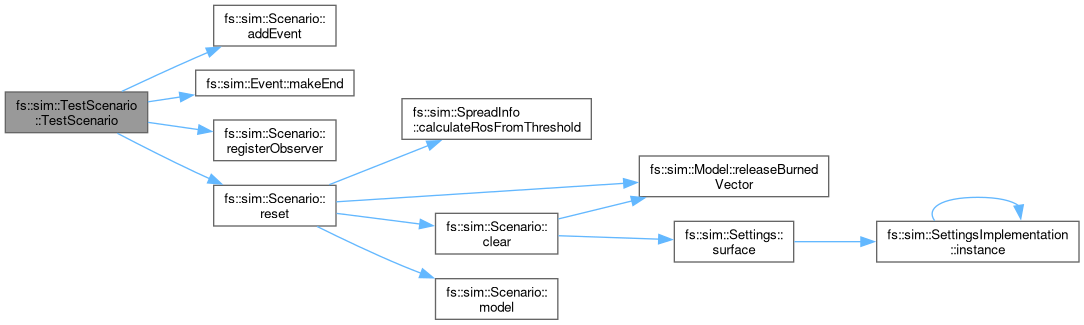

Here is the call graph for this function:

The documentation for this class was generated from the following file:

firestarr/src/cpp/Test.cpp
