fs::topo::Position< V > Class Template Reference

A Position with a row and column. More...

#include <Location.h>

Public Member Functions
constexpr Idx	row () const noexcept
	Row.
constexpr Idx	column () const noexcept
	Column.
constexpr HashSize	hash () const noexcept
	Hash derived from row and column.
constexpr bool	operator== (const Position &rhs) const noexcept
	Equality operator.
constexpr bool	operator!= (const Position &rhs) const noexcept
	Inequality operator.

Protected Member Functions
constexpr	Position (const Topo &topo) noexcept
	Construct with given hash that may contain data from subclasses.

Static Protected Member Functions
static constexpr HashSize	doHash (const Idx row, const Idx column) noexcept
	Create a hash from given values.
static constexpr Idx	unhashRow (const Topo hash) noexcept
	Row from hash.
static constexpr Idx	unhashColumn (const Topo hash) noexcept
	Column.

Protected Attributes
V	topo_data_
	Stored hash that contains row and column data.

Static Protected Attributes
static constexpr uint32_t	XYBits = std::bit_width<uint32_t>(MAX_ROWS - 1)
	Number of bits to use for storing one coordinate of Position data.
static constexpr uint32_t	PositionBits = XYBits * 2
	Number of bits to use for storing Position data.
static constexpr Topo	ColumnMask = util::bit_mask<XYBits, Topo>()
	Hash mask for bits being used for Position data.
static constexpr Topo	HashMask = util::bit_mask<PositionBits, Topo>()
	Hash mask for bits being used for Position data.

Detailed Description

template<class V>
class fs::topo::Position< V >

A Position with a row and column.

Constructor & Destructor Documentation

Position()

template<class V >

fs::topo::Position< V >::Position ( const Topo & topo )

inlineexplicitconstexprprotectednoexcept

Construct with given hash that may contain data from subclasses.

Parameters

topo	Hash to store

Member Function Documentation

column()

template<class V >

Idx fs::topo::Position< V >::column ( ) const

inlinenodiscardconstexprnoexcept

Column.

Returns

Column

Here is the call graph for this function:

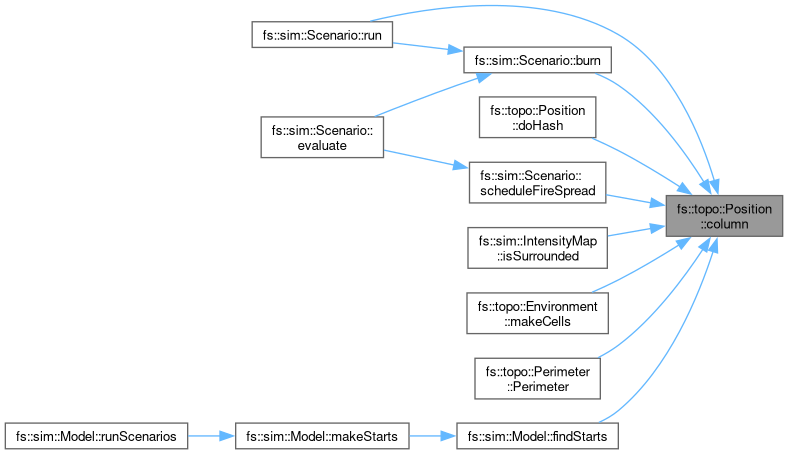

Here is the caller graph for this function:

doHash()

template<class V >

static constexpr HashSize fs::topo::Position< V >::doHash ( const Idx row, const Idx column )

inlinestaticnodiscardconstexprprotectednoexcept

Create a hash from given values.

Parameters

row	Row
column	Column

Returns

Hash

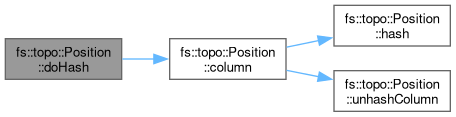

Here is the call graph for this function:

hash()

template<class V >

HashSize fs::topo::Position< V >::hash ( ) const

inlinenodiscardconstexprnoexcept

Hash derived from row and column.

Returns

Hash derived from row and column

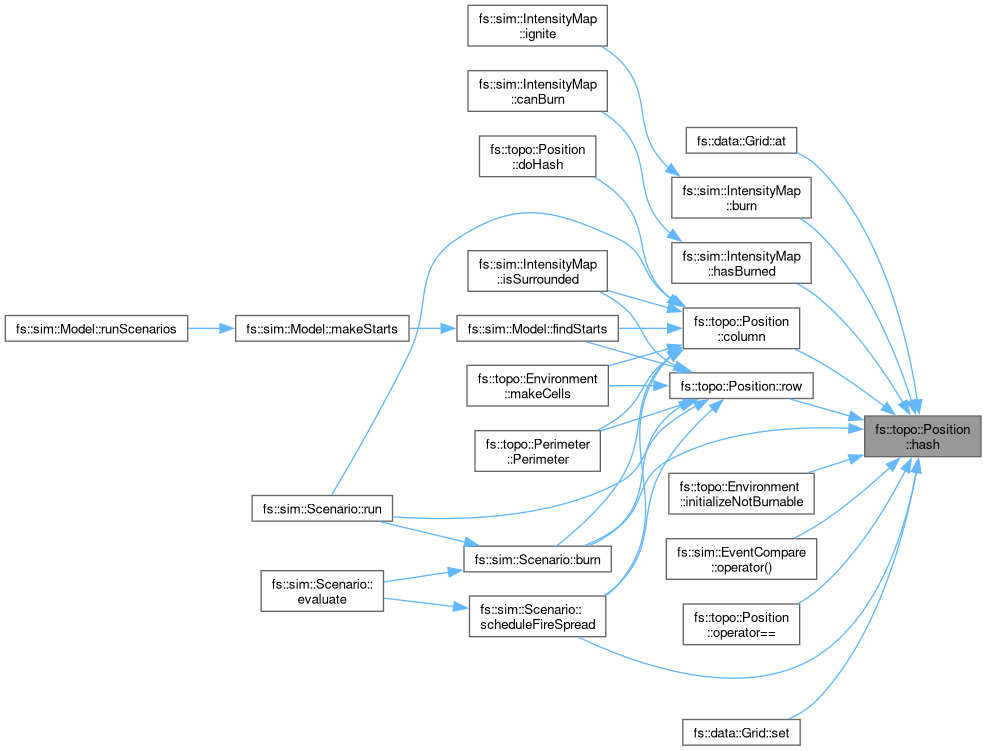

Here is the caller graph for this function:

operator!=()

template<class V >

bool fs::topo::Position< V >::operator!= ( const Position< V > & rhs ) const

inlinenodiscardconstexprnoexcept

Inequality operator.

Parameters

rhs	Position to compare to

Returns

Whether or not these are not equivalent

operator==()

template<class V >

bool fs::topo::Position< V >::operator== ( const Position< V > & rhs ) const

inlinenodiscardconstexprnoexcept

Equality operator.

Parameters

rhs	Position to compare to

Returns

Whether or not these are equivalent

Here is the call graph for this function:

row()

template<class V >

Idx fs::topo::Position< V >::row ( ) const

inlinenodiscardconstexprnoexcept

Row.

Returns

Row

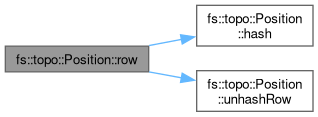

Here is the call graph for this function:

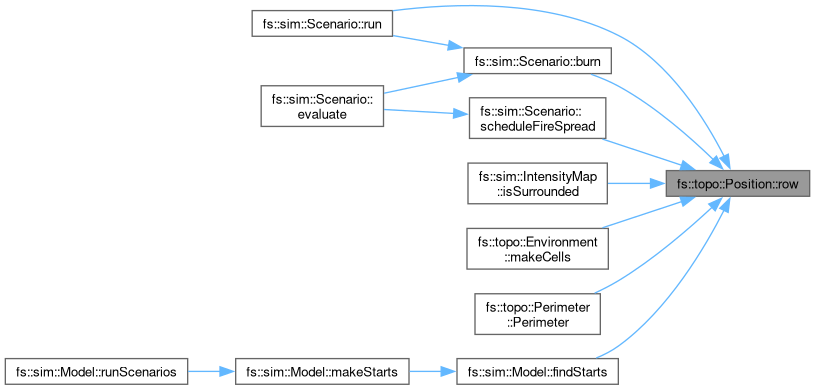

Here is the caller graph for this function:

unhashColumn()

template<class V >

static constexpr Idx fs::topo::Position< V >::unhashColumn ( const Topo hash )

inlinestaticnodiscardconstexprprotectednoexcept

Column.

Parameters

hash	hash to extract column from

Returns

Column

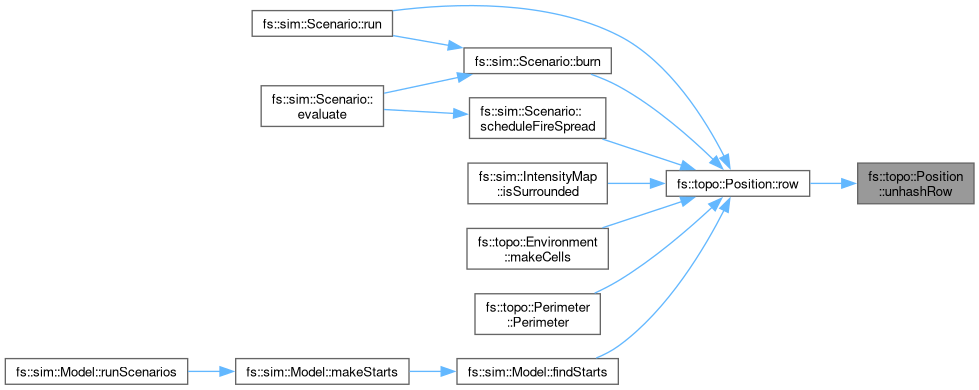

Here is the caller graph for this function:

unhashRow()

template<class V >

static constexpr Idx fs::topo::Position< V >::unhashRow ( const Topo hash )

inlinestaticnodiscardconstexprprotectednoexcept

Row from hash.

Parameters

hash	hash to extract row from

Returns

Row from hash

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• firestarr/src/cpp/Location.h
