Contains all the immutable information regarding a simulation that is common between Scenarios. More...

#include <Model.h>

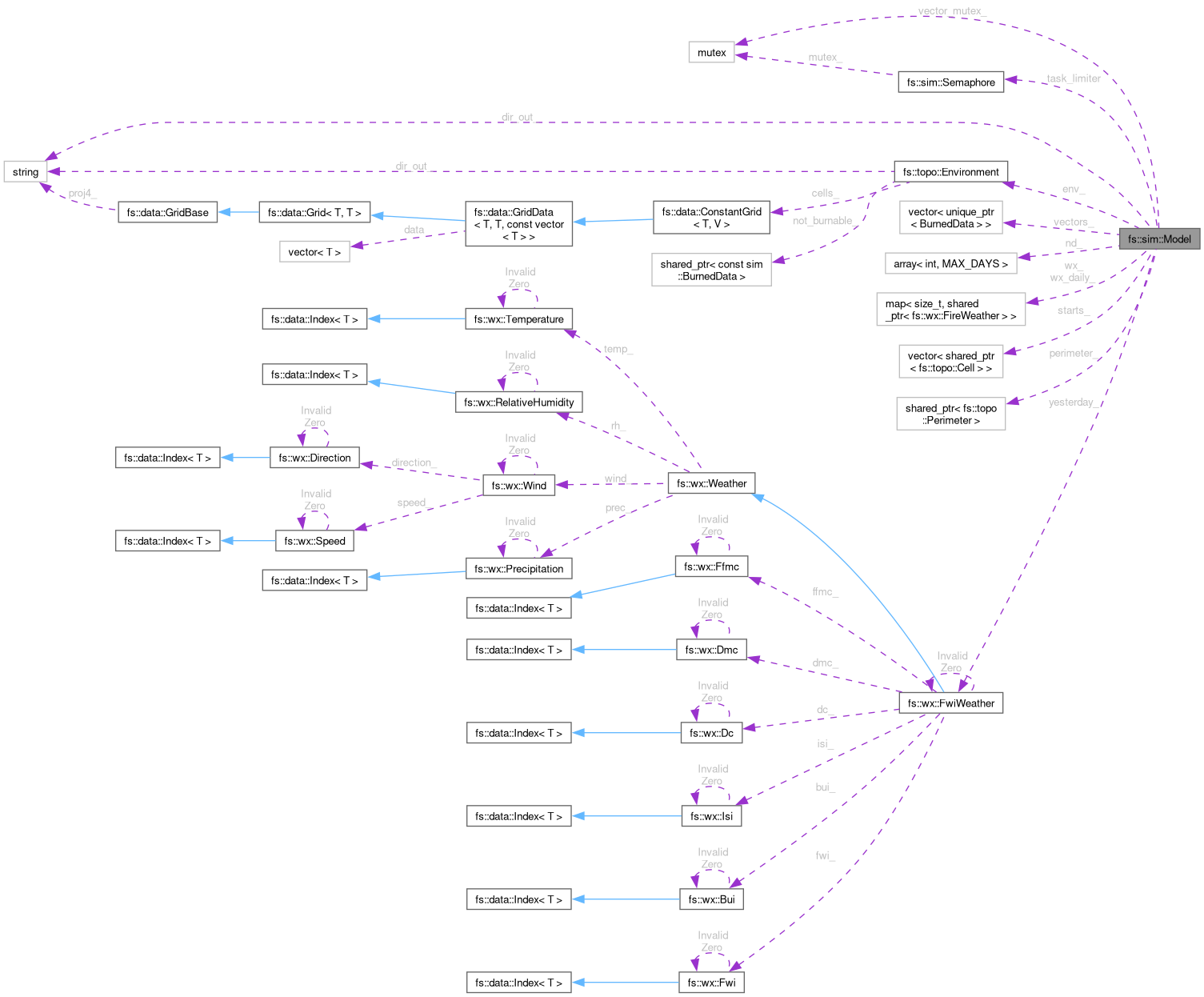

Collaboration diagram for fs::sim::Model:

[legend]

Public Member Functions
topo::Cell	cell (const Idx row, const Idx column) const
	Cell at the given row and column.

template<class P >
constexpr topo::Cell	cell (const Position< P > &position) const
	Cell at the given Location.

constexpr Idx	rows () const
	Cell at the Location represented by the given hash.

constexpr Idx	columns () const
	Number of columns in extent.

constexpr MathSize	cellSize () const
	Cell width and height (m)

constexpr const topo::Environment &	environment () const
	Environment simulation is occurring in.

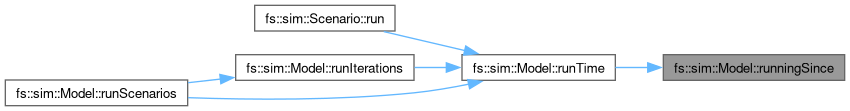

constexpr Clock::time_point	runningSince () const
	Time that execution started.

constexpr Clock::duration	timeLimit () const
	Maximum amount of time simulation can run for before being stopped.

constexpr Clock::duration	interimTimeLimit () const
	Time between generating interim outputs (s)

bool	shouldStop () const noexcept
	Whether or not simulation has exceeded any limits that mean it should stop.

bool	isOutOfTime () const noexcept
	Whether or not simulation has been running longer than maximum duration.

bool	isOverSimulationCountLimit () const noexcept
	Whether or not simulation is over max simulation count.

int	year () const noexcept
	What year the weather is for.

int	ignitionScenarios () const noexcept
	How many ignition scenarios are being used.

int	scenarioCount () const noexcept
	How many Scenarios are in each Iteration.

constexpr int	nd (const DurationSize time) const
	Difference between date and the date of minimum foliar moisture content.

const char *	outputDirectory () const

std::chrono::seconds	runTime () const
	Duration that model has run for.

std::chrono::seconds	timeSinceLastSave () const
	Time since last interim save.

ProbabilityMap *	makeProbabilityMap (DurationSize time, DurationSize start_time) const
	Create a ProbabilityMap with the same extent as this.

	Model (const string dir_out, const topo::StartPoint &start_point, topo::Environment *env)
	Constructor.

	Model (Model &&rhs) noexcept=delete

	Model (const Model &rhs)=delete

Model &	operator= (Model &&rhs) noexcept=delete

Model &	operator= (const Model &rhs)=delete

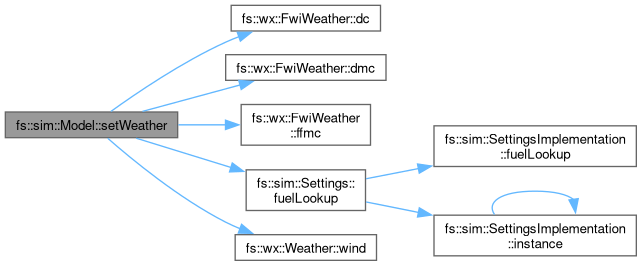

void	setWeather (const wx::FwiWeather &weather, const Day start_day)
	Set constant weather.

void	readWeather (const wx::FwiWeather &yesterday, const MathSize latitude, const string &filename)
	Read weather used for Scenarios.

void	makeStarts (Coordinates coordinates, const topo::Point &point, string perim, size_t size)
	Make starts based on desired point and where nearest combustible cells are.

Iteration	readScenarios (const topo::StartPoint &start_point, DurationSize start, Day start_day, Day last_date)
	Create an Iteration by initializing Scenarios.

BurnedData *	getBurnedVector () const noexcept
	Acquire a BurnedData that has already burnt cells set.

void	releaseBurnedVector (BurnedData *has_burned) const noexcept
	Return a BurnedData so it can be used in the future.

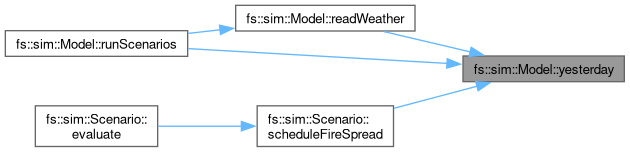

const wx::FwiWeather *	yesterday () const noexcept

Static Public Member Functions
static int	runScenarios (const string dir_out, const char weather_input, const wx::FwiWeather &yesterday, const char raster_root, const topo::StartPoint &start_point, const tm &start_time, const string &perimeter, size_t size)
	Run Scenarios initialized from given inputs.

Static Public Attributes
static Semaphore	task_limiter {static_cast<int>(std::thread::hardware_concurrency())}
	Semaphore used to limit how many things run at once.

Private Member Functions
void	add_statistics (vector< MathSize > all_sizes, vector< MathSize > means, vector< MathSize > *pct, const util::SafeVector &sizes)
	Add statistics for completed iterations.

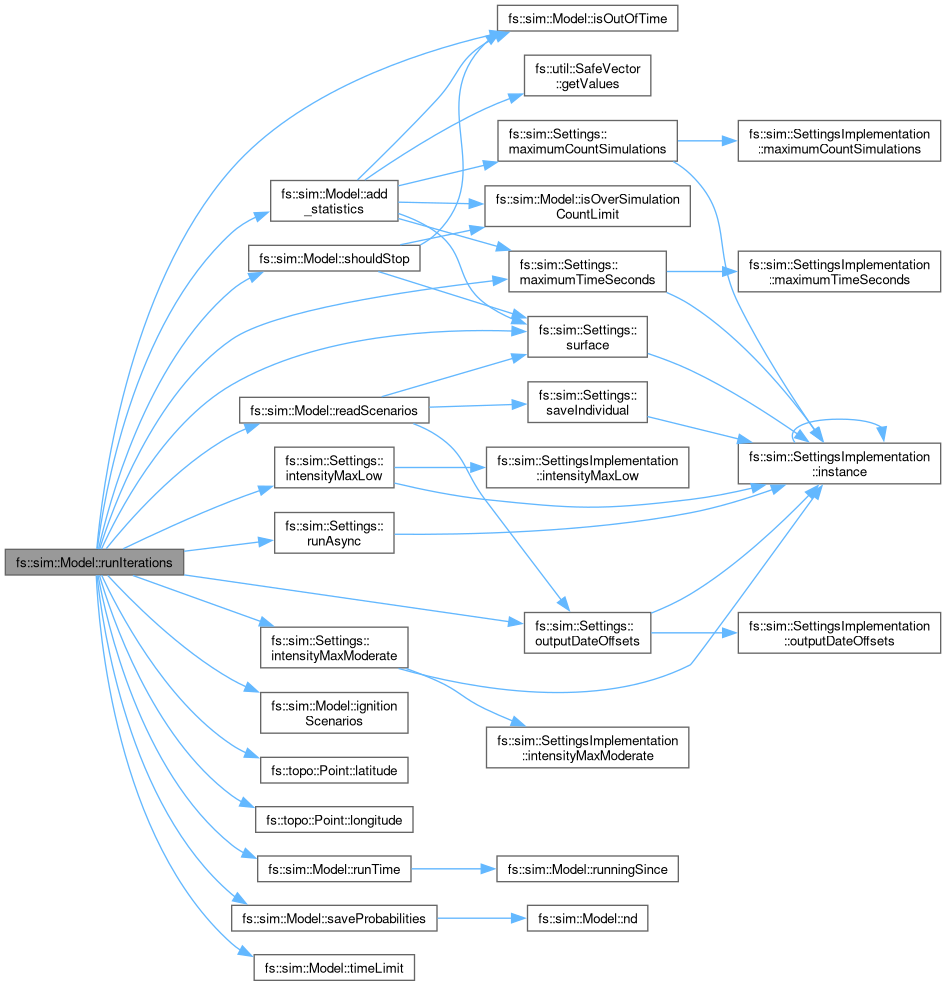

map< DurationSize, ProbabilityMap * >	runIterations (const topo::StartPoint &start_point, DurationSize start, Day start_day)
	Run Iterations until confidence is reached.

DurationSize	saveProbabilities (map< DurationSize, ProbabilityMap * > &probabilities, const Day start_day, const bool is_interim)

void	findStarts (Location location)
	Find Cell(s) that can burn closest to Location.

Private Attributes
const string	dir_out_

mutex	vector_mutex_
	Mutex for parallel access.

tm	start_time_
	Start time of simulation.

vector< unique_ptr< BurnedData > >	vectors_ {}
	Pool of BurnedData that can be reused.

array< int, MAX_DAYS >	nd_ {}
	Differences between date and the date of minimum foliar moisture content.

map< size_t, shared_ptr< wx::FireWeather > >	wx_ {}
	Map of scenario number to weather stream.

map< size_t, shared_ptr< wx::FireWeather > >	wx_daily_ {}
	Map of scenario number to weather stream.

vector< shared_ptr< topo::Cell > >	starts_ {}
	Cell(s) that can burn closest to start Location.

Clock::time_point	running_since_
	Time to use for simulation start.

Clock::duration	time_limit_
	Maximum amount of time simulation can run for before being stopped.

Clock::time_point	no_interim_save_since_
	Time of last interim save.

Clock::duration	interim_save_interval_

shared_ptr< topo::Perimeter >	perimeter_ = nullptr
	Initial intensity map based off perimeter.

topo::Environment *	env_
	Environment to use for Model.

int	year_
	What year the weather is for.

bool	is_out_of_time_ = false
	If simulation is out of time and should stop.

bool	should_output_interim_ = false
	If simulation is past the time interval between interim outputs.

bool	is_being_cancelled_ = false
	If simulation is being cancelled.

size_t	scenarios_done_ = 0
	How many scenarios have been completed.

size_t	scenarios_required_done_ = 0
	How many scenarios out of first iteration have been completed.

atomic< size_t >	scenarios_last_save_ = 0
	Scenarios completed at time of last interim save.

size_t	scenarios_per_iteration_ = 0
	Number of scenarios per iteration.

size_t	iterations_done_ = 0
	How many iterations have been completed.

bool	interim_changed_ = true
	If interim outputs are different than last time they were saved.

bool	is_over_simulation_count_ = false
	If simulation is over max simulation count.

wx::FwiWeather	yesterday_

std::chrono::steady_clock::time_point	last_checked_
	Time when we last checked if simulation should end.

MathSize	latitude_
	Latitude to use for any calcualtions.

MathSize	longitude_
	Longitude to use for any calcualtions.

mutex	mutex_

Detailed Description

Contains all the immutable information regarding a simulation that is common between Scenarios.

Constructor & Destructor Documentation

◆ Model()

fs::sim::Model::Model	(	const string	dir_out,
		const topo::StartPoint &	start_point,
		topo::Environment *	env )

Constructor.

Parameters

start_point	StartPoint to use for sunrise/sunset times
env	Environment to run simulations in

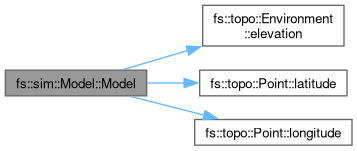

Here is the call graph for this function:

Member Function Documentation

◆ add_statistics()

void fs::sim::Model::add_statistics	(	vector< MathSize > *	all_sizes,
		vector< MathSize > *	means,
		vector< MathSize > *	pct,
		const util::SafeVector &	sizes )

private

Add statistics for completed iterations.

Parameters

all_sizes	All sizes that have simulations have produced
means	Mean sizes per iteration
pct	95th percentile sizes per iteration
cur_sizes	Sizes to add to statistics

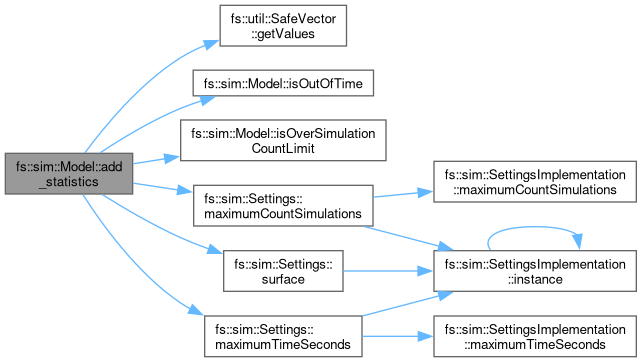

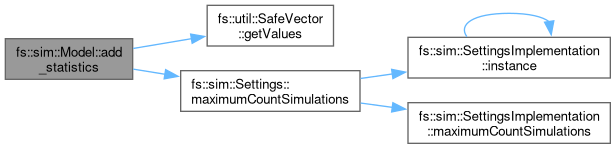

Here is the call graph for this function:

Here is the caller graph for this function:

◆ cell() [1/2]

topo::Cell fs::sim::Model::cell	(	const Idx	row,
		const Idx	column ) const

inlinenodiscard

Cell at the given row and column.

Parameters

row	Row
column	Column

Returns: Cell at the given row and column

Here is the call graph for this function:

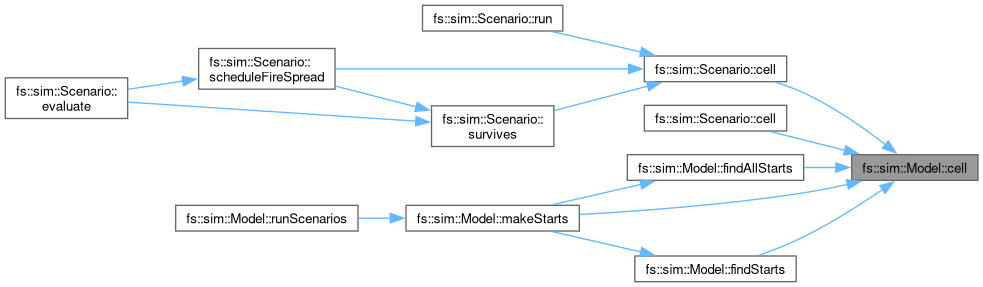

Here is the caller graph for this function:

◆ cell() [2/2]

template<class P >

topo::Cell fs::sim::Model::cell ( const Position< P > & position ) const

inlinenodiscardconstexpr

Cell at the given Location.

Parameters

location Location to get Cell for

Returns: Cell at the given Location

Here is the call graph for this function:

◆ cellSize()

MathSize fs::sim::Model::cellSize ( ) const

inlinenodiscardconstexpr

Cell width and height (m)

Returns: Cell width and height (m)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ columns()

Idx fs::sim::Model::columns ( ) const

inlinenodiscardconstexpr

Number of columns in extent.

Returns: Number of columns in extent

Here is the call graph for this function:

Here is the caller graph for this function:

◆ environment()

const topo::Environment & fs::sim::Model::environment ( ) const

inlinenodiscardconstexpr

Environment simulation is occurring in.

Returns: Environment simulation is occurring in

Here is the caller graph for this function:

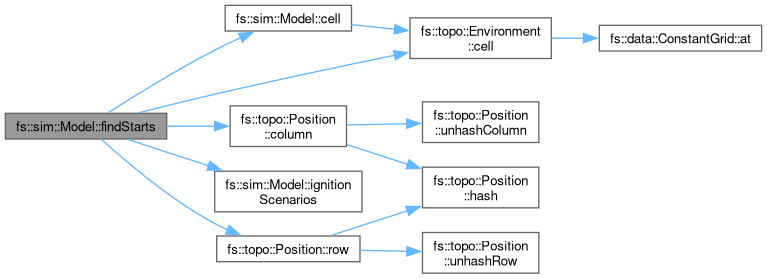

◆ findStarts()

void fs::sim::Model::findStarts ( Location location )

private

Find Cell(s) that can burn closest to Location.

Parameters

location Location to look for start Cells

Here is the call graph for this function:

Here is the caller graph for this function:

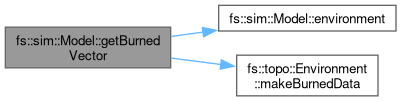

◆ getBurnedVector()

BurnedData * fs::sim::Model::getBurnedVector ( ) const

nodiscardnoexcept

Acquire a BurnedData that has already burnt cells set.

Returns: A BurnedData that has already burnt cells set

Here is the call graph for this function:

Here is the caller graph for this function:

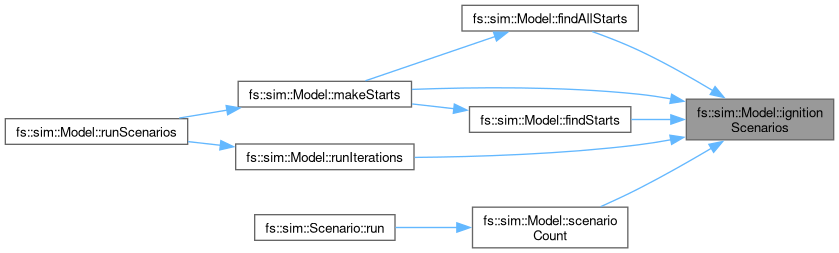

◆ ignitionScenarios()

int fs::sim::Model::ignitionScenarios ( ) const

inlinenodiscardnoexcept

How many ignition scenarios are being used.

Returns: How many ignition scenarios are being used

Here is the caller graph for this function:

◆ interimTimeLimit()

Clock::duration fs::sim::Model::interimTimeLimit ( ) const

inlinenodiscardconstexpr

Time between generating interim outputs (s)

Returns: Time between generating interim outputs (s)

Here is the caller graph for this function:

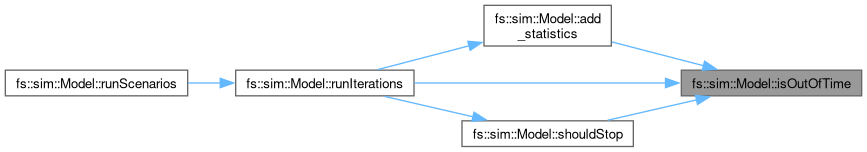

◆ isOutOfTime()

bool fs::sim::Model::isOutOfTime ( ) const

nodiscardnoexcept

Whether or not simulation has been running longer than maximum duration.

Returns: Whether or not simulation has been running longer than maximum duration

Here is the caller graph for this function:

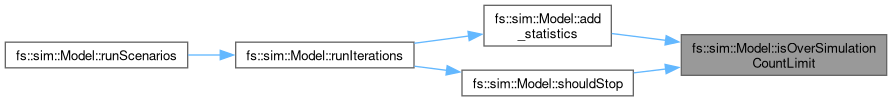

◆ isOverSimulationCountLimit()

bool fs::sim::Model::isOverSimulationCountLimit ( ) const

nodiscardnoexcept

Whether or not simulation is over max simulation count.

Returns: Whether or not simulation is over max simulation count

Here is the caller graph for this function:

◆ makeProbabilityMap()

ProbabilityMap * fs::sim::Model::makeProbabilityMap	(	DurationSize	time,
		DurationSize	start_time ) const

nodiscard

Create a ProbabilityMap with the same extent as this.

Parameters

time	Time in simulation this ProbabilityMap represents
start_time	Start time of simulation
min_value	Lower bound of 'low' intensity range
low_max	Upper bound of 'low' intensity range
med_max	Upper bound of 'moderate' intensity range
max_value	Upper bound of 'high' intensity range

Returns: ProbabilityMap with the same extent as this

Here is the call graph for this function:

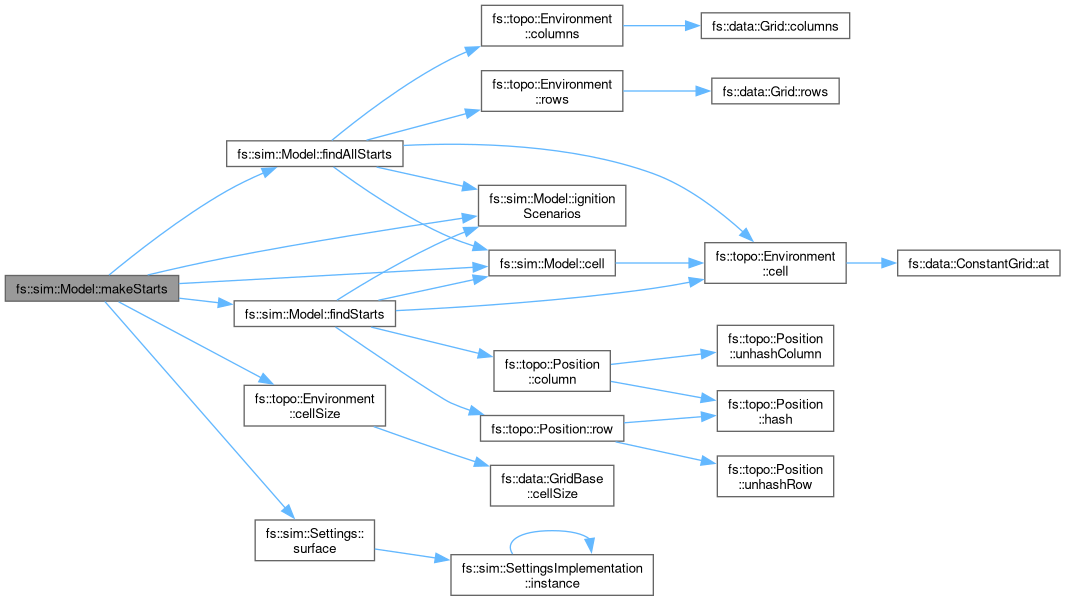

◆ makeStarts()

void fs::sim::Model::makeStarts	(	Coordinates	coordinates,
		const topo::Point &	point,
		string	perim,
		size_t	size )

Make starts based on desired point and where nearest combustible cells are.

Parameters

coordinates	Coordinates in the Environment to try starting at
point	Point Coordinates represent
perim	Perimeter to start from, if there is one
size	Size of fire to create if no input Perimeter

Here is the call graph for this function:

Here is the caller graph for this function:

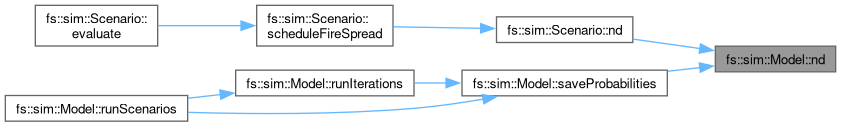

◆ nd()

int fs::sim::Model::nd ( const DurationSize time ) const

inlinenodiscardconstexpr

Difference between date and the date of minimum foliar moisture content.

Parameters

time	Date to get value for

Returns: Difference between date and the date of minimum foliar moisture content

Here is the caller graph for this function:

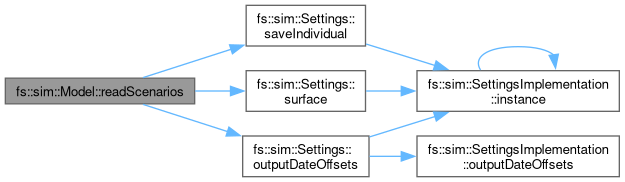

◆ readScenarios()

Iteration fs::sim::Model::readScenarios	(	const topo::StartPoint &	start_point,
		DurationSize	start,
		Day	start_day,
		Day	last_date )

nodiscard

Create an Iteration by initializing Scenarios.

Parameters

start_point	StartPoint to use for sunrise/sunset
start	Start time for simulation
start_day	Start date for simulation
last_date	End date for simulation

Returns: Iteration containing initialized Scenarios

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readWeather()

void fs::sim::Model::readWeather	(	const wx::FwiWeather &	yesterday,
		const MathSize	latitude,
		const string &	filename )

Read weather used for Scenarios.

Parameters

yesterday	FwiWeather for yesterday
latitude	Latitude to calculate for
filename	Weather file to read

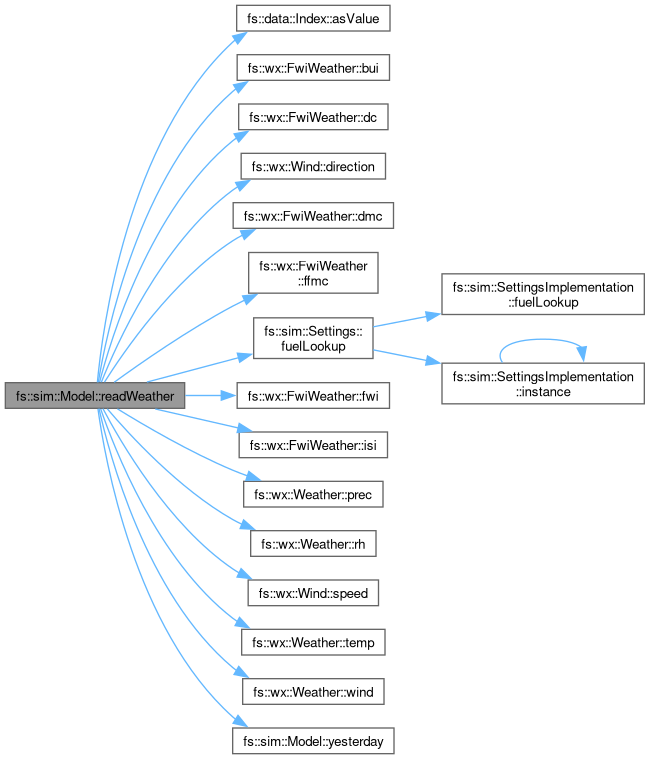

Here is the call graph for this function:

Here is the caller graph for this function:

◆ releaseBurnedVector()

void fs::sim::Model::releaseBurnedVector ( BurnedData * has_burned ) const

noexcept

Return a BurnedData so it can be used in the future.

Parameters

has_burned BurnedData to return to pool

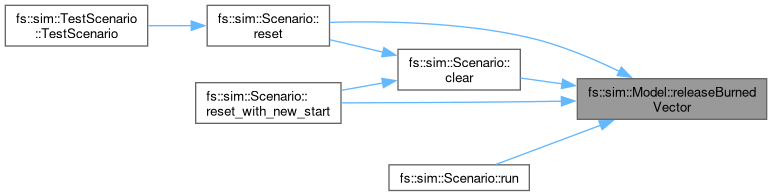

Here is the caller graph for this function:

◆ rows()

Idx fs::sim::Model::rows ( ) const

inlinenodiscardconstexpr

Cell at the Location represented by the given hash.

Parameters

hash_size Hash size for Location to get Cell for

Returns: Cell at the Location represented by the given hash

Number of rows in extent

Returns: Number of rows in extent

Here is the call graph for this function:

Here is the caller graph for this function:

◆ runIterations()

map< DurationSize, ProbabilityMap * > fs::sim::Model::runIterations	(	const topo::StartPoint &	start_point,
		DurationSize	start,
		Day	start_day )

private

Run Iterations until confidence is reached.

Parameters

start_point	StartPoint to use for sunrise/sunset
start	Start time for simulation
start_day	Start day for simulation

Returns: Map of times to ProbabilityMap for that time

Here is the call graph for this function:

Here is the caller graph for this function:

◆ runningSince()

Clock::time_point fs::sim::Model::runningSince ( ) const

inlinenodiscardconstexpr

Time that execution started.

Returns: Time that execution started

Here is the caller graph for this function:

◆ runScenarios()

int fs::sim::Model::runScenarios	(	const string	dir_out,
		const char *	weather_input,
		const wx::FwiWeather &	yesterday,
		const char *	raster_root,
		const topo::StartPoint &	start_point,
		const tm &	start_time,
		const string &	perimeter,
		size_t	size )

staticnodiscard

Run Scenarios initialized from given inputs.

Parameters

dir_out	Folder to save outputs to
weather_input	Name of file to read weather from
yesterday	FwiWeather yesterday used for startup indices
raster_root	Directory to read raster inputs from
start_point	StartPoint to use for sunrise/sunset
start_time	Start time for simulation
perimeter	Perimeter to initialize fire from, if there is one
size	Size to start fire at if no Perimeter

Returns

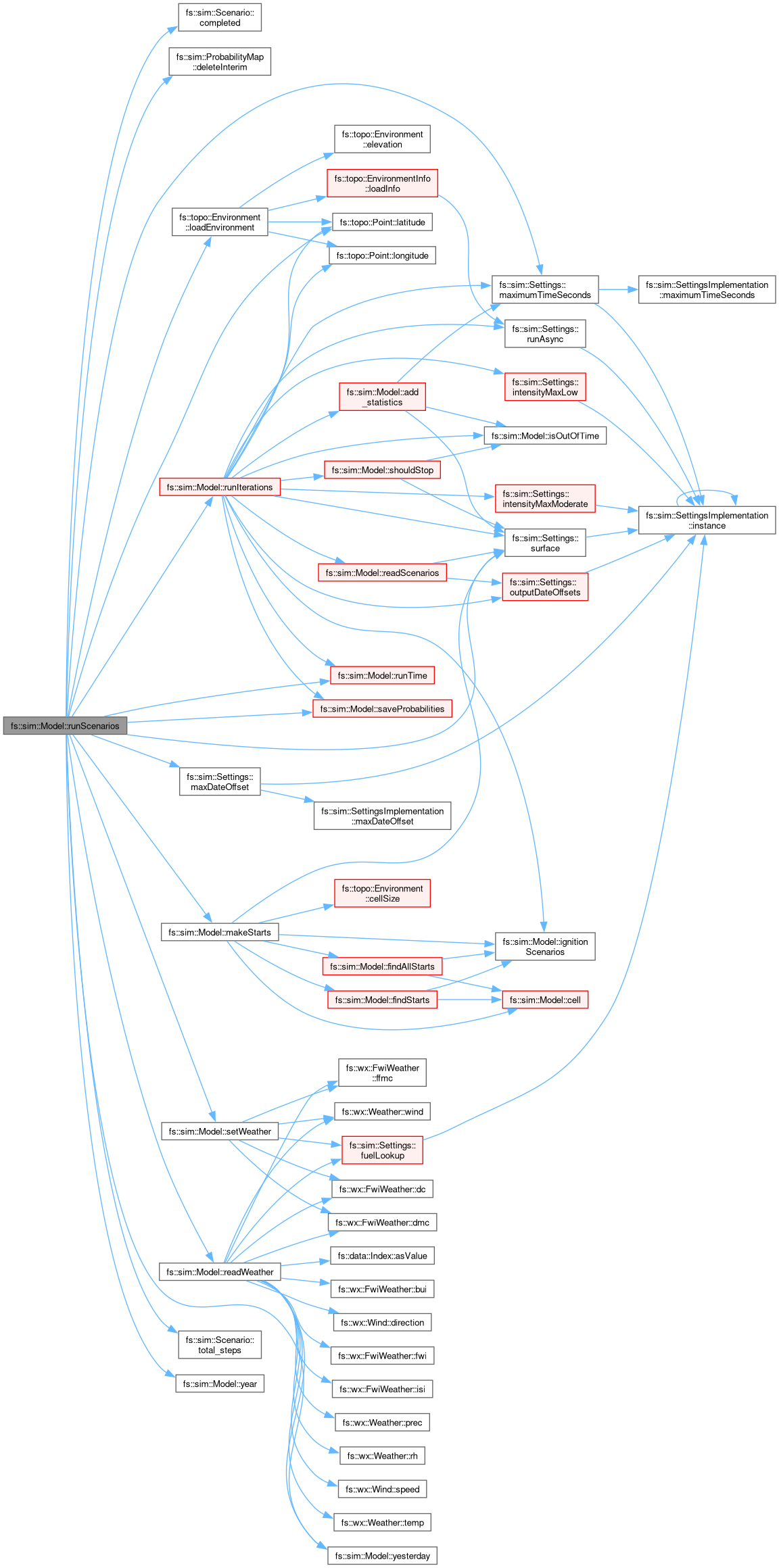

Here is the call graph for this function:

◆ runTime()

std::chrono::seconds fs::sim::Model::runTime ( ) const

nodiscard

Duration that model has run for.

Returns: std::chrono::seconds Duration model has been running for

Here is the call graph for this function:

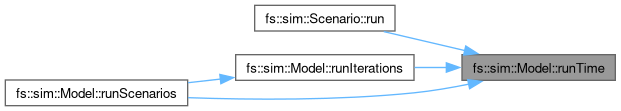

Here is the caller graph for this function:

◆ saveProbabilities()

DurationSize fs::sim::Model::saveProbabilities	(	map< DurationSize, ProbabilityMap * > &	probabilities,
		const Day	start_day,
		const bool	is_interim )

private

Save probability rasters

Here is the call graph for this function:

Here is the caller graph for this function:

◆ scenarioCount()

int fs::sim::Model::scenarioCount ( ) const

inlinenodiscardnoexcept

How many Scenarios are in each Iteration.

Returns: How many Scenarios are in each Iteration

Here is the call graph for this function:

◆ setWeather()

void fs::sim::Model::setWeather	(	const wx::FwiWeather &	weather,
		const Day	start_day )

Set constant weather.

Parameters

weather FwiWeather to use as constant weather

Here is the call graph for this function:

◆ shouldStop()

bool fs::sim::Model::shouldStop ( ) const

nodiscardnoexcept

Whether or not simulation has exceeded any limits that mean it should stop.

Returns: Whether or not simulation has exceeded any limits that mean it should stop

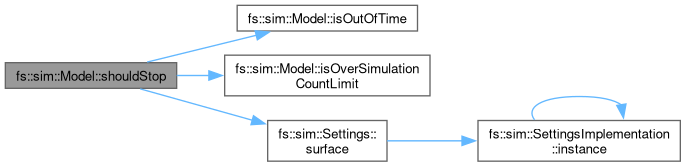

Here is the call graph for this function:

Here is the caller graph for this function:

◆ timeLimit()

Clock::duration fs::sim::Model::timeLimit ( ) const

inlinenodiscardconstexpr

Maximum amount of time simulation can run for before being stopped.

Returns: Maximum amount of time simulation can run for before being stopped

Here is the caller graph for this function:

◆ timeSinceLastSave()

std::chrono::seconds fs::sim::Model::timeSinceLastSave ( ) const

nodiscard

Time since last interim save.

Returns: std::chrono::seconds Time since last interim save

Here is the caller graph for this function:

◆ year()

int fs::sim::Model::year ( ) const

inlinenodiscardnoexcept

What year the weather is for.

Returns: What year the weather is for

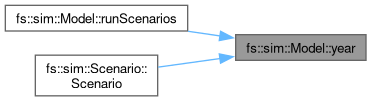

Here is the caller graph for this function:

◆ yesterday()

const wx::FwiWeather * fs::sim::Model::yesterday ( ) const

inlinenoexcept

Conditions for yesterday (or constant weather)

Here is the caller graph for this function:

Member Data Documentation

◆ interim_save_interval_

Clock::duration fs::sim::Model::interim_save_interval_

private

\briefTime between generating interim outputs

◆ perimeter_

shared_ptr<topo::Perimeter> fs::sim::Model::perimeter_ = nullptr

private

Initial intensity map based off perimeter.

Perimeter to use for initializing simulations

◆ yesterday_

wx::FwiWeather fs::sim::Model::yesterday_

private

Conditions for yesterday (or constant weather)

The documentation for this class was generated from the following files:

firestarr/src/cpp/Model.h
firestarr/src/cpp/Model.cpp

Public Member Functions

Static Public Member Functions

Static Public Attributes

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Model()

Member Function Documentation

◆ add_statistics()

◆ cell() [1/2]

◆ cell() [2/2]

◆ cellSize()

◆ columns()

◆ environment()

◆ findStarts()

◆ getBurnedVector()

◆ ignitionScenarios()

◆ interimTimeLimit()

◆ isOutOfTime()

◆ isOverSimulationCountLimit()

◆ makeProbabilityMap()

◆ makeStarts()

◆ nd()

◆ readScenarios()

◆ readWeather()

◆ releaseBurnedVector()

◆ rows()

◆ runIterations()

◆ runningSince()

◆ runScenarios()

◆ runTime()

◆ saveProbabilities()

◆ scenarioCount()

◆ setWeather()

◆ shouldStop()

◆ timeLimit()

◆ timeSinceLastSave()

◆ year()

◆ yesterday()

Member Data Documentation

◆ interim_save_interval_

◆ perimeter_

◆ yesterday_
