The area that a Model is run for, with Fuel, Slope, and Aspect grids. More...

#include <Environment.h>

Inheritance diagram for fs::topo::Environment:

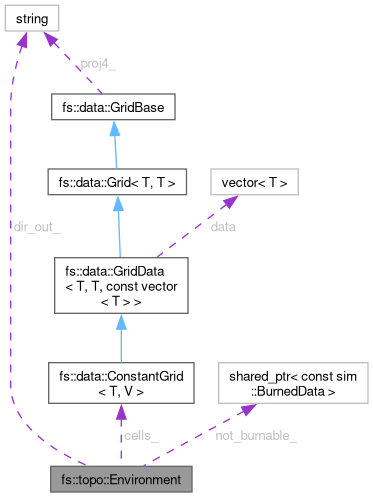

Collaboration diagram for fs::topo::Environment:

[legend]

Public Member Functions
unique_ptr< Coordinates >	findCoordinates (const Point &point, bool flipped) const
	Determine Coordinates in the grid for the Point.

	Environment (Environment &&rhs) noexcept=default
	Move constructor.

	Environment (const Environment &rhs) noexcept=default
	Copy constructor.

Environment &	operator= (Environment &&rhs) noexcept=default
	Move assignment.

Environment &	operator= (const Environment &rhs) noexcept=default
	Copy assignment.

constexpr const string &	proj4 () const
	UTM projection that this uses.

constexpr Idx	rows () const
	Number of rows in grid.

constexpr Idx	columns () const
	Number of columns in grid.

constexpr MathSize	cellSize () const
	Cell width and height (m)

constexpr ElevationSize	elevation () const
	Elevation of the origin Point.

Cell	cell (const Idx row, const Idx column) const
	Cell at given row and column.

template<class P >
constexpr Cell	cell (const Position< P > &position) const
	Cell at given Location.

Cell	offset (const sim::Event &event, const Idx row, const Idx column) const
	Cell at Location with given hash.

sim::ProbabilityMap *	makeProbabilityMap (DurationSize time, DurationSize start_time) const
	Make a ProbabilityMap that covers this Environment.

template<class Other >
unique_ptr< data::GridMap< Other > >	makeMap (const Other nodata) const
	Create a GridMap<Other> covering this Environment.

unique_ptr< sim::BurnedData >	makeBurnedData () const
	Create BurnedData and set burned bits based on Perimeter.

void	resetBurnedData (sim::BurnedData *data) const noexcept
	Reset with known non-fuel cells.

Static Public Member Functions
static Environment	loadEnvironment (const string dir_out, const string &path, const Point &point, const string &perimeter, int year)
	Load from rasters in folder that have same projection as Perimeter.

static Environment	load (const string dir_out, const Point &point, const string &in_fuel, const string &in_elevation)
	Load from rasters.

Protected Member Functions
shared_ptr< sim::BurnedData >	initializeNotBurnable (const CellGrid &cells) const
	Creates a map of areas that are not burnable either because of fuel or the initial perimeter.

	Environment (const string dir_out, CellGrid *cells, const ElevationSize elevation) noexcept
	Construct from cells and elevation.

	Environment (const string dir_out, const FuelGrid &fuel, const ElevationGrid &elevation, const Point &point)
	Load from rasters.

Static Protected Member Functions
static CellGrid *	makeCells (const FuelGrid &fuel, const ElevationGrid &elevation)
	Combine rasters into ConstantGrid<Cell, Topo>

Private Attributes
string	dir_out_

CellGrid *	cells_
	Cells representing Environment.

shared_ptr< const sim::BurnedData >	not_burnable_
	BurnedData of cells that are not burnable.

ElevationSize	elevation_
	Elevation at StartPoint.

Detailed Description

The area that a Model is run for, with Fuel, Slope, and Aspect grids.

Constructor & Destructor Documentation

◆ Environment() [1/4]

fs::topo::Environment::Environment ( Environment && rhs )

defaultnoexcept

Move constructor.

Parameters

rhs	Environment to move from

Here is the caller graph for this function:

◆ Environment() [2/4]

fs::topo::Environment::Environment ( const Environment & rhs )

defaultnoexcept

Copy constructor.

Parameters

rhs	Environment to copy from

◆ Environment() [3/4]

fs::topo::Environment::Environment	(	const string	dir_out,
		CellGrid *	cells,
		const ElevationSize	elevation )

inlineprotectednoexcept

Construct from cells and elevation.

Parameters

cells	Cells representing Environment
elevation	Elevation at origin Point

◆ Environment() [4/4]

fs::topo::Environment::Environment	(	const string	dir_out,
		const FuelGrid &	fuel,
		const ElevationGrid &	elevation,
		const Point &	point )

inlineprotected

Load from rasters.

Parameters

fuel	Fuel raster
elevation	Elevation raster

Member Function Documentation

◆ cell() [1/2]

Cell fs::topo::Environment::cell	(	const Idx	row,
		const Idx	column ) const

inlinenodiscard

Cell at given row and column.

Parameters

row	Row
column	Column

Returns: Cell at given row and column

Here is the call graph for this function:

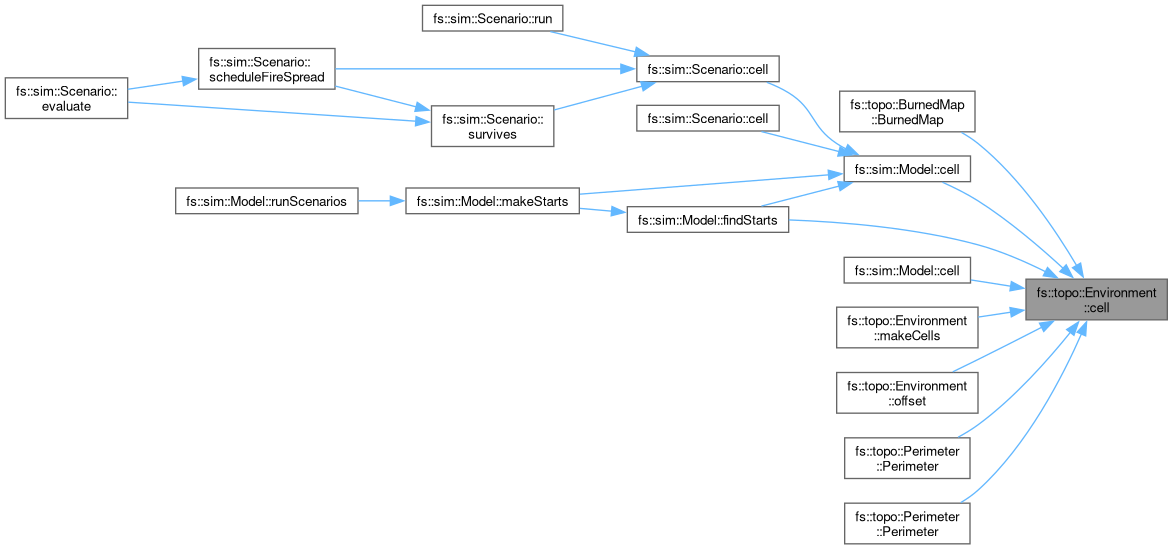

Here is the caller graph for this function:

◆ cell() [2/2]

template<class P >

Cell fs::topo::Environment::cell ( const Position< P > & position ) const

inlinenodiscardconstexpr

Cell at given Location.

Parameters

location Location

Returns: Cell at given Location

Here is the call graph for this function:

◆ cellSize()

MathSize fs::topo::Environment::cellSize ( ) const

inlinenodiscardconstexpr

Cell width and height (m)

Returns: Cell width and height (m)

Here is the call graph for this function:

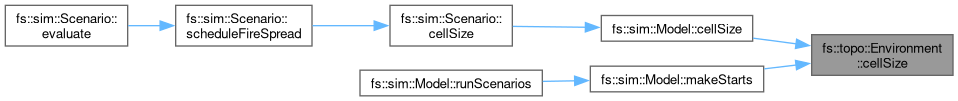

Here is the caller graph for this function:

◆ columns()

Idx fs::topo::Environment::columns ( ) const

inlinenodiscardconstexpr

Number of columns in grid.

Returns: Number of columns in grid

Here is the call graph for this function:

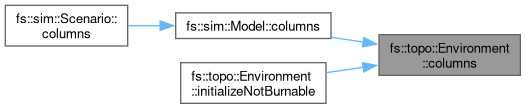

Here is the caller graph for this function:

◆ elevation()

ElevationSize fs::topo::Environment::elevation ( ) const

inlinenodiscardconstexpr

Elevation of the origin Point.

Returns: Elevation of the origin Point

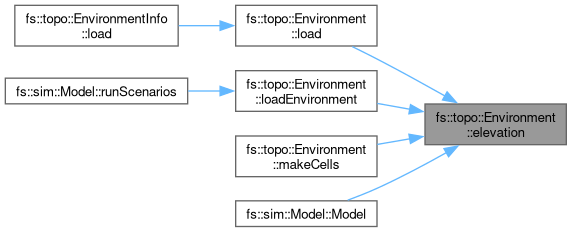

Here is the caller graph for this function:

◆ findCoordinates()

unique_ptr< Coordinates > fs::topo::Environment::findCoordinates	(	const Point &	point,
		bool	flipped ) const

nodiscard

Determine Coordinates in the grid for the Point.

Parameters

point	Point to find Coordinates for
flipped	Whether the grid data is flipped across the horizontal axis

Returns: Coordinates that would be at Point within this EnvironmentInfo, or nullptr if it is not

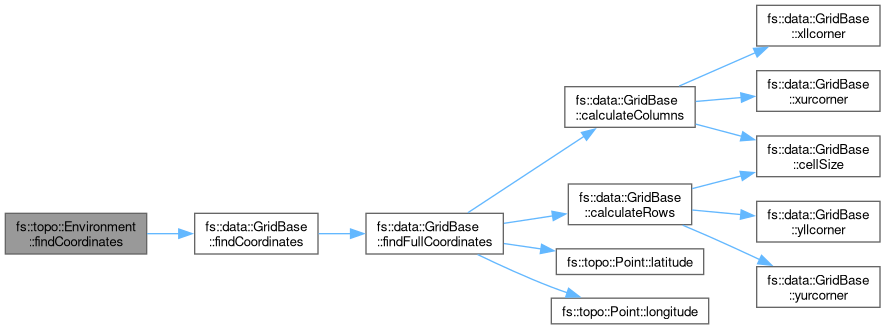

Here is the call graph for this function:

◆ load()

Environment fs::topo::Environment::load	(	const string	dir_out,
		const Point &	point,
		const string &	in_fuel,
		const string &	in_elevation )

staticnodiscard

Load from rasters.

Parameters

point	Origin point
in_fuel	Fuel raster
in_elevation	Elevation raster

Returns: Environment

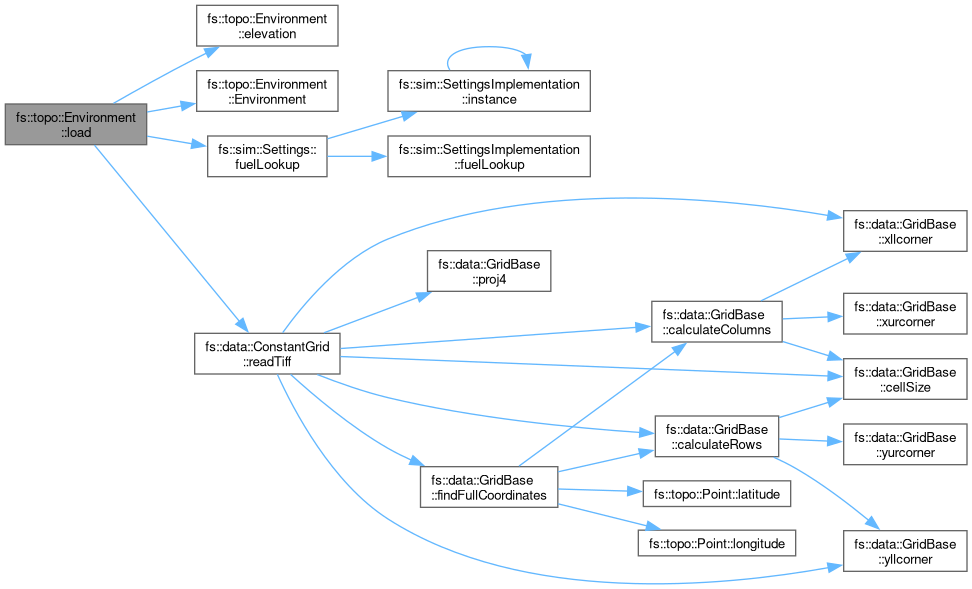

Here is the call graph for this function:

Here is the caller graph for this function:

◆ loadEnvironment()

Environment fs::topo::Environment::loadEnvironment	(	const string	dir_out,
		const string &	path,
		const Point &	point,
		const string &	perimeter,
		int	year )

staticnodiscard

Load from rasters in folder that have same projection as Perimeter.

Parameters

dir_out	Folder to save outputs to
path	Folder to read rasters from
point	Origin point
perimeter	Perimeter to use projection from
year	Year to look for rasters for if available

Returns: Environment

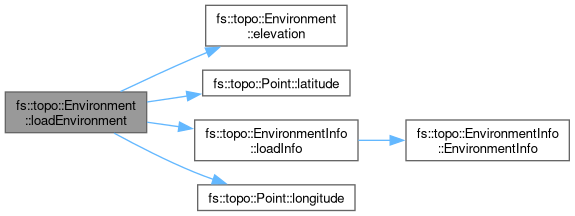

Here is the call graph for this function:

Here is the caller graph for this function:

◆ makeBurnedData()

unique_ptr< sim::BurnedData > fs::topo::Environment::makeBurnedData ( ) const

inlinenodiscard

Create BurnedData and set burned bits based on Perimeter.

Returns: BurnedData with all initially burned locations set

Here is the caller graph for this function:

◆ makeCells()

static CellGrid * fs::topo::Environment::makeCells	(	const FuelGrid &	fuel,
		const ElevationGrid &	elevation )

inlinestaticnodiscardprotected

Combine rasters into ConstantGrid<Cell, Topo>

Parameters

elevation Elevation raster

Returns

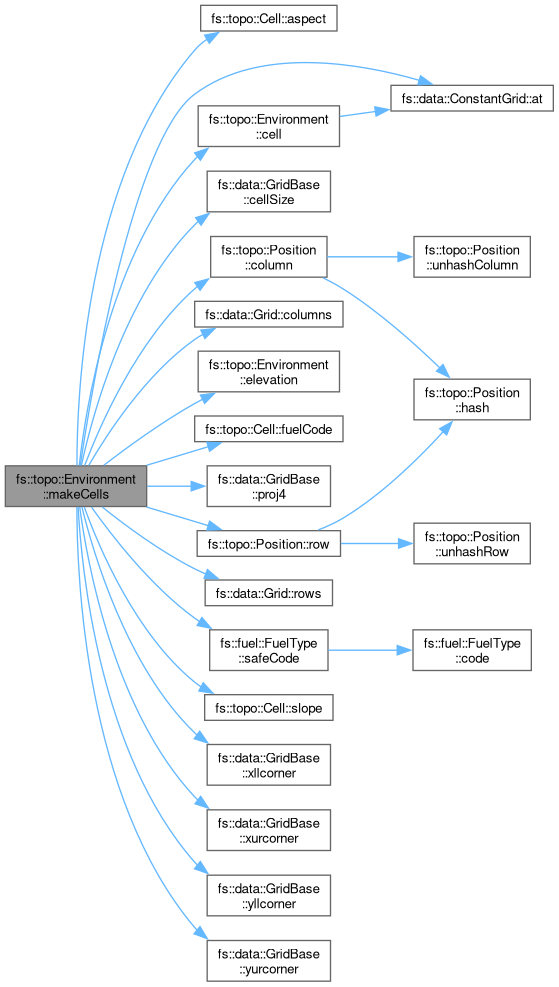

Here is the call graph for this function:

◆ makeMap()

template<class Other >

unique_ptr< data::GridMap< Other > > fs::topo::Environment::makeMap ( const Other nodata ) const

inlinenodiscard

Create a GridMap<Other> covering this Environment.

Template Parameters

Other Type of GridMap

Parameters

nodata Value that represents no data

Returns: GridMap<Other> covering this Environment

Here is the caller graph for this function:

◆ makeProbabilityMap()

sim::ProbabilityMap * fs::topo::Environment::makeProbabilityMap	(	DurationSize	time,
		DurationSize	start_time ) const

nodiscard

Make a ProbabilityMap that covers this Environment.

Parameters

time	Time in simulation this ProbabilityMap represents
start_time	Start time of simulation
min_value	Lower bound of 'low' intensity range
low_max	Upper bound of 'low' intensity range
med_max	Upper bound of 'moderate' intensity range
max_value	Upper bound of 'high' intensity range

Returns: ProbabilityMap with the same extent as this

Here is the caller graph for this function:

◆ offset()

Cell fs::topo::Environment::offset	(	const sim::Event &	event,
		const Idx	row,
		const Idx	column ) const

inlinenodiscard

Cell at Location with given hash.

Parameters

hash_size Hash

Returns: Cell at Location with given hash

Cell at Location with offset of row and column from Location of Event

Parameters

event	Event to use for base Location
row
column

Returns

Here is the call graph for this function:

◆ operator=() [1/2]

Environment & fs::topo::Environment::operator= ( const Environment & rhs )

defaultnoexcept

Copy assignment.

Parameters

rhs	Environment to copy from

Returns: This, after assignment

◆ operator=() [2/2]

Environment & fs::topo::Environment::operator= ( Environment && rhs )

defaultnoexcept

Move assignment.

Parameters

rhs	Environment to move from

Returns: This, after assignment

◆ proj4()

const string & fs::topo::Environment::proj4 ( ) const

inlinenodiscardconstexpr

UTM projection that this uses.

Returns: UTM projection that this uses

Here is the call graph for this function:

◆ resetBurnedData()

void fs::topo::Environment::resetBurnedData ( sim::BurnedData * data ) const

inlinenoexcept

Reset with known non-fuel cells.

Parameters

data	BurnedData to reset

◆ rows()

Idx fs::topo::Environment::rows ( ) const

inlinenodiscardconstexpr

Number of rows in grid.

Returns: Number of rows in grid

Here is the call graph for this function:

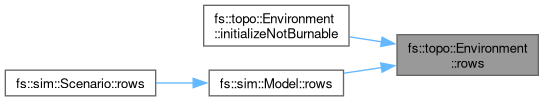

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

firestarr/src/cpp/Environment.h
firestarr/src/cpp/Environment.cpp
