Map of the percentage of simulations in which a Cell burned in each intensity category. More...

#include <ProbabilityMap.h>

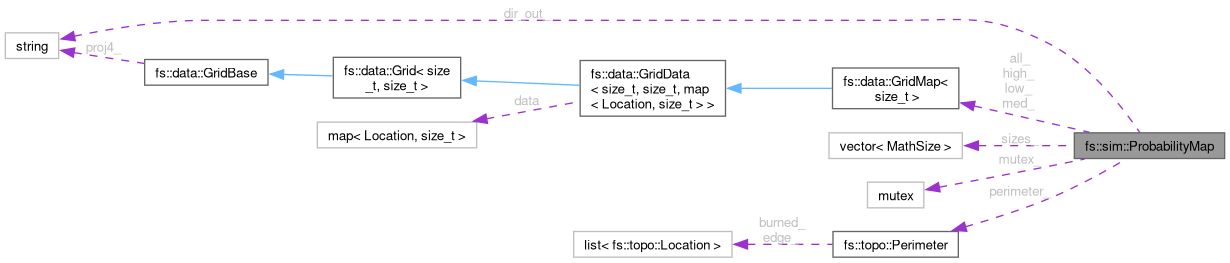

Collaboration diagram for fs::sim::ProbabilityMap:

[legend]

Public Member Functions
	ProbabilityMap (const ProbabilityMap &rhs) noexcept=delete

	ProbabilityMap (ProbabilityMap &&rhs) noexcept=delete

ProbabilityMap &	operator= (const ProbabilityMap &rhs) noexcept=delete

ProbabilityMap &	operator= (ProbabilityMap &&rhs) noexcept=delete

	ProbabilityMap (const string dir_out, DurationSize time, DurationSize start_time, int min_value, int low_max, int med_max, int max_value, const data::GridBase &grid_info)
	Constructor.

ProbabilityMap *	copyEmpty () const
	Create a copy of this that is empty.

void	setPerimeter (const topo::Perimeter *const perimeter)
	Assign perimeter to use for marking cells as initial perimeter.

void	addProbabilities (const ProbabilityMap &rhs)
	Combine results from another ProbabilityMap into this one.

void	addProbability (const IntensityMap &for_time)
	Add in an IntensityMap to the appropriate probability grid based on each cell burn intensity.

vector< MathSize >	getSizes () const
	List of sizes of IntensityMaps that have been added.

util::Statistics	getStatistics () const
	Generate Statistics on sizes of IntensityMaps that have been added.

size_t	numSizes () const noexcept
	Number of sizes that have been added.

void	show () const
	Output Statistics to log.

void	saveSizes (const string &base_name) const
	Save list of sizes.

void	saveAll (const tm &start_time, DurationSize time, const bool is_interim) const
	Save total, low, moderate, and high maps, and output information to log.

void	saveTotal (const string &base_name, const bool is_interim) const
	Save map representing all intensities.

void	saveTotalCount (const string &base_name) const
	Save map representing all intensities occurrence.

void	saveHigh (const string &base_name) const
	Save map representing high intensities.

void	saveModerate (const string &base_name) const
	Save map representing moderate intensities.

void	saveLow (const string &base_name) const
	Save map representing low intensities.

void	reset ()
	Clear maps and return to initial state.

Static Public Member Functions
static void	deleteInterim ()

Private Member Functions
bool	record_if_interim (const char *filename) const
	Make note of any interim files for later deletion.

template<class R >
string	saveToProbabilityFile (const data::GridMap< size_t > &grid, const string &dir, const string &base_name, const R divisor) const
	Save probability file and record filename if interim.

Private Attributes
const string	dir_out_
	Directory to write outputs to.

data::GridMap< size_t >	all_
	Map representing all intensities.

data::GridMap< size_t >	high_
	Map representing high intensities.

data::GridMap< size_t >	med_
	Map representing moderate intensities.

data::GridMap< size_t >	low_
	Map representing low intensities.

vector< MathSize >	sizes_ {}
	List of sizes for perimeters that have been added.

const DurationSize	time_
	Time in simulation this ProbabilityMap represents.

const DurationSize	start_time_
	Start time of simulation.

mutex	mutex_
	Mutex for parallel access.

IntensitySize	min_value_
	Lower bound of 'low' intensity range.

IntensitySize	max_value_
	Upper bound of 'high' intensity range.

const IntensitySize	low_max_
	Upper bound of 'low' intensity range.

const IntensitySize	med_max_
	Upper bound of 'moderate' intensity range.

const topo::Perimeter *	perimeter_
	Initial ignition grid to apply to outputs.

Detailed Description

Map of the percentage of simulations in which a Cell burned in each intensity category.

Constructor & Destructor Documentation

◆ ProbabilityMap()

fs::sim::ProbabilityMap::ProbabilityMap	(	const string	dir_out,
		DurationSize	time,
		DurationSize	start_time,
		int	min_value,
		int	low_max,
		int	med_max,
		int	max_value,
		const data::GridBase &	grid_info )

Constructor.

Parameters

dir_out	Directory to save outputs to
time	Time in simulation this ProbabilityMap represents
start_time	Start time of simulation
min_value	Lower bound of 'low' intensity range
low_max	Upper bound of 'low' intensity range
med_max	Upper bound of 'moderate' intensity range
max_value	Upper bound of 'high' intensity range
grid_info	GridBase to use for extent of this

Member Function Documentation

◆ addProbabilities()

void fs::sim::ProbabilityMap::addProbabilities ( const ProbabilityMap & rhs )

Combine results from another ProbabilityMap into this one.

Parameters

rhs	ProbabilityMap to combine from

Here is the call graph for this function:

◆ addProbability()

void fs::sim::ProbabilityMap::addProbability ( const IntensityMap & for_time )

Add in an IntensityMap to the appropriate probability grid based on each cell burn intensity.

Parameters

for_time IntensityMap to add results from

Here is the call graph for this function:

◆ copyEmpty()

ProbabilityMap * fs::sim::ProbabilityMap::copyEmpty ( ) const

Create a copy of this that is empty.

Returns: New empty Probability with same range bounds and times

◆ deleteInterim()

void fs::sim::ProbabilityMap::deleteInterim ( )

static

Delete interim output files

Here is the caller graph for this function:

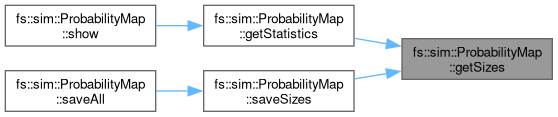

◆ getSizes()

vector< MathSize > fs::sim::ProbabilityMap::getSizes ( ) const

nodiscard

List of sizes of IntensityMaps that have been added.

Returns: List of sizes of IntensityMaps that have been added

◆ getStatistics()

util::Statistics fs::sim::ProbabilityMap::getStatistics ( ) const

nodiscard

Generate Statistics on sizes of IntensityMaps that have been added.

Returns: Generate Statistics on sizes of IntensityMaps that have been added

◆ numSizes()

size_t fs::sim::ProbabilityMap::numSizes ( ) const

nodiscardnoexcept

Number of sizes that have been added.

Returns: Number of sizes that have been added

◆ saveAll()

void fs::sim::ProbabilityMap::saveAll	(	const tm &	start_time,
		DurationSize	time,
		const bool	is_interim ) const

Save total, low, moderate, and high maps, and output information to log.

Parameters

start_time	Start time of simulation
time	Time for these maps

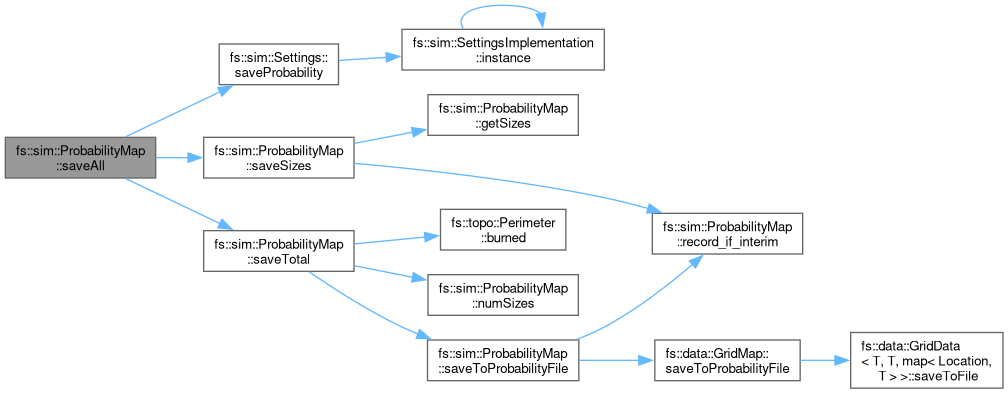

Here is the call graph for this function:

◆ saveHigh()

void fs::sim::ProbabilityMap::saveHigh ( const string & base_name ) const

Save map representing high intensities.

Parameters

base_name Base file name to save to

◆ saveLow()

void fs::sim::ProbabilityMap::saveLow ( const string & base_name ) const

Save map representing low intensities.

Parameters

base_name Base file name to save to

◆ saveModerate()

void fs::sim::ProbabilityMap::saveModerate ( const string & base_name ) const

Save map representing moderate intensities.

Parameters

base_name Base file name to save to

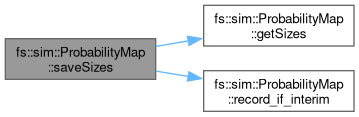

◆ saveSizes()

void fs::sim::ProbabilityMap::saveSizes ( const string & base_name ) const

Save list of sizes.

Parameters

base_name Base name of file to save into

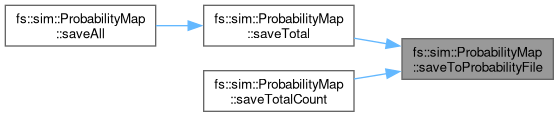

◆ saveToProbabilityFile()

template<class R >

string fs::sim::ProbabilityMap::saveToProbabilityFile	(	const data::GridMap< size_t > &	grid,
		const string &	dir,
		const string &	base_name,
		const R	divisor ) const

inlineprivate

Save probability file and record filename if interim.

Returns: Path for file that was written

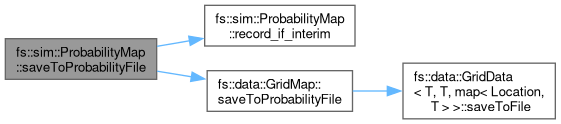

Here is the call graph for this function:

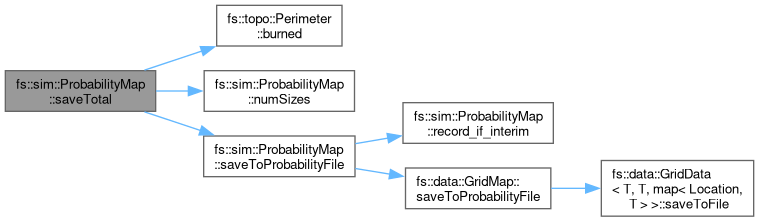

◆ saveTotal()

void fs::sim::ProbabilityMap::saveTotal	(	const string &	base_name,
		const bool	is_interim ) const

Save map representing all intensities.

Parameters

base_name Base file name to save to

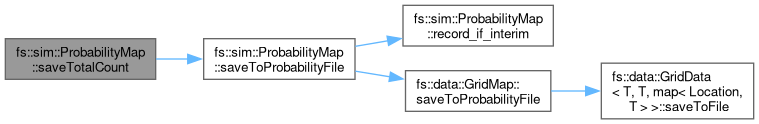

◆ saveTotalCount()

void fs::sim::ProbabilityMap::saveTotalCount ( const string & base_name ) const

Save map representing all intensities occurrence.

Parameters

base_name Base file name to save to

◆ setPerimeter()

void fs::sim::ProbabilityMap::setPerimeter ( const topo::Perimeter *const perimeter )

Assign perimeter to use for marking cells as initial perimeter.

Parameters

perimeter Ignition grid to store for marking in outputs

The documentation for this class was generated from the following files:

firestarr/src/cpp/ProbabilityMap.h
firestarr/src/cpp/ProbabilityMap.cpp
