fs::sim::IntensityMap Class Reference

Represents a map of intensities that cells have burned at for a single Scenario. More...

#include <IntensityMap.h>

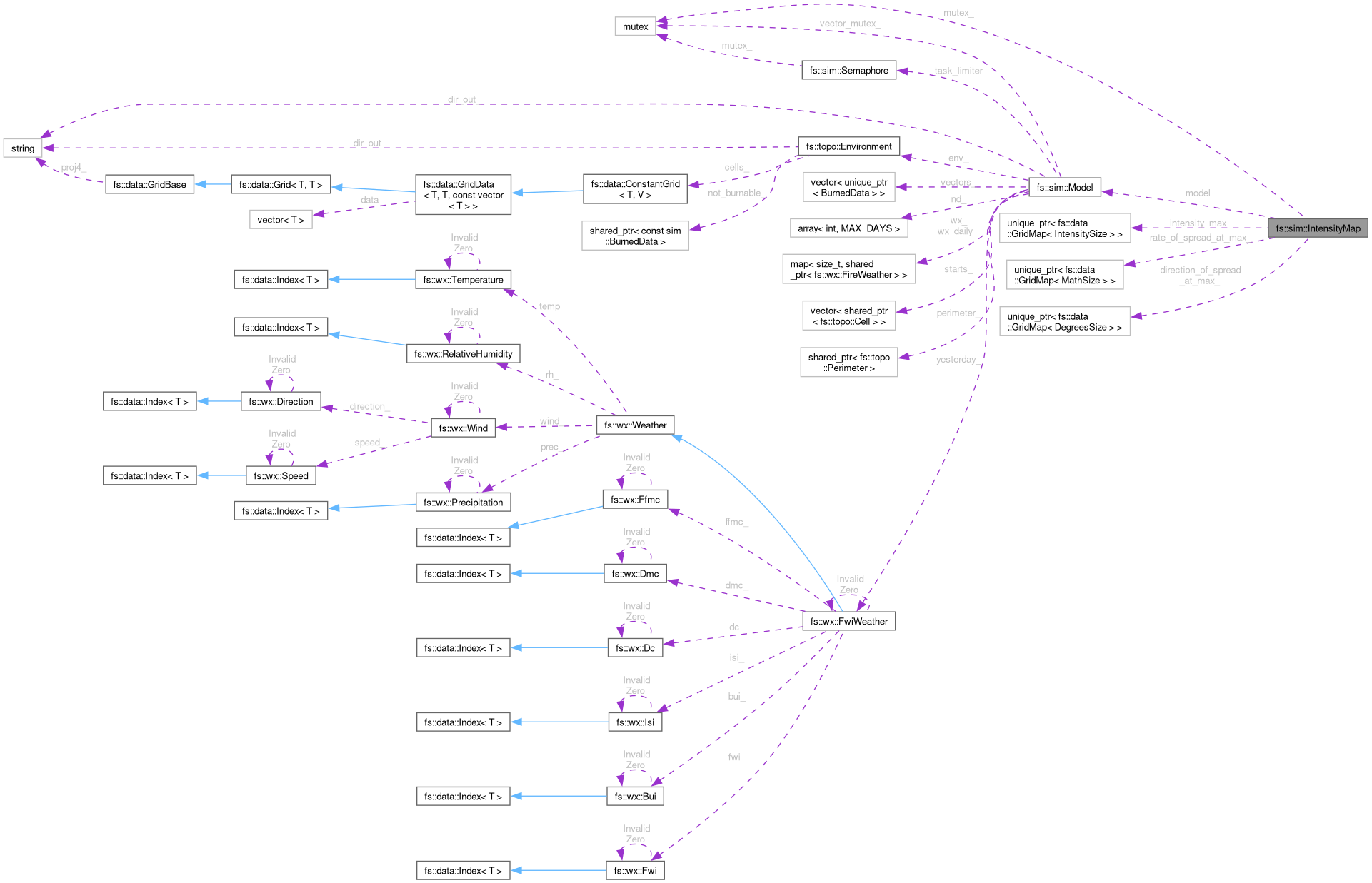

Collaboration diagram for fs::sim::IntensityMap:

Public Member Functions
	IntensityMap (const Model &model) noexcept
	Constructor.
	IntensityMap (const IntensityMap &rhs)
	IntensityMap (IntensityMap &&rhs)=delete
IntensityMap &	operator= (const IntensityMap &rhs)=delete
IntensityMap &	operator= (IntensityMap &&rhs) noexcept=delete
Idx	rows () const
	Number of rows in this extent.
Idx	columns () const
	Number of columns in this extent.
void	applyPerimeter (const topo::Perimeter &perimeter) noexcept
	Set cells in the map to be burned based on Perimeter.
bool	canBurn (const Location &location) const
	Whether or not the Cell with the given hash can burn.
template<class P >
bool	canBurn (const Position< P > &position) const
bool	hasBurned (const Location &location) const
	Whether or not the Location with the given hash can burn.
template<class P >
bool	hasBurned (const Position< P > &position) const
bool	isSurrounded (const Location &location) const
	Whether or not all Locations surrounding the given Location are burned.
template<class P >
bool	isSurrounded (const Position< P > &position) const
void	ignite (const Location &location)
	Mark given location as burned.
template<class P >
void	ignite (const Position< P > &position)
void	burn (const Location &location, IntensitySize intensity, MathSize ros, fs::wx::Direction raz)
	Update Location with specified values.
template<class P >
void	burn (const Position< P > &position, const IntensitySize intensity, const MathSize ros, const fs::wx::Direction &raz)
void	save (const string &dir, const string &base_name) const
	Save contents to an ASCII file.
MathSize	fireSize () const
	Size of the fire represented by this.
map< Location, IntensitySize >::const_iterator	cbegin () const noexcept
	Iterator for underlying GridMap.
map< Location, IntensitySize >::const_iterator	cend () const noexcept
	Iterator for underlying GridMap.

Private Attributes
mutex	mutex_ {}
	Mutex for parallel access.
const Model &	model_
	Model map is for.
unique_ptr< data::GridMap< IntensitySize > >	intensity_max_
	Map of intensity that cells have burned at.
unique_ptr< data::GridMap< MathSize > >	rate_of_spread_at_max_
	Map of rate of spread/direction that cells have burned with at max ros.
unique_ptr< data::GridMap< DegreesSize > >	direction_of_spread_at_max_
BurnedData *	is_burned_
	bitset denoting cells that can no longer burn

Detailed Description

Represents a map of intensities that cells have burned at for a single Scenario.

Constructor & Destructor Documentation

IntensityMap()

fs::sim::IntensityMap::IntensityMap ( const Model & model )

explicitnoexcept

Constructor.

Parameters

model

Model to use extent from

Member Function Documentation

applyPerimeter()

void fs::sim::IntensityMap::applyPerimeter ( const topo::Perimeter & perimeter )

noexcept

Set cells in the map to be burned based on Perimeter.

Parameters

perimeter

Perimeter to burn cells based on

burn()

void fs::sim::IntensityMap::burn	(	const Location &	location,
		IntensitySize	intensity,
		MathSize	ros,
		fs::wx::Direction	raz )

Update Location with specified values.

Parameters

location	Location to burn
intensity	Intensity to burn with (kW/m)
ros	Rate of spread to check against maximu (m/min)
raz	Spread azimuth for ros

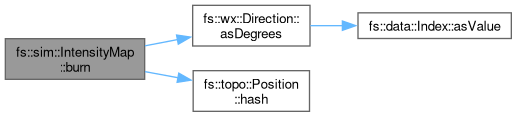

Here is the call graph for this function:

Here is the caller graph for this function:

canBurn()

bool fs::sim::IntensityMap::canBurn ( const Location & location ) const

nodiscard

Whether or not the Cell with the given hash can burn.

Parameters

hash	Hash for Cell to check

Returns

Whether or not the Cell with the given hash can burn

Here is the call graph for this function:

cbegin()

map< Location, IntensitySize >::const_iterator fs::sim::IntensityMap::cbegin ( ) const

nodiscardnoexcept

Iterator for underlying GridMap.

Returns

Iterator for underlying GridMap

Here is the caller graph for this function:

cend()

map< Location, IntensitySize >::const_iterator fs::sim::IntensityMap::cend ( ) const

nodiscardnoexcept

Iterator for underlying GridMap.

Returns

Iterator for underlying GridMap

Here is the caller graph for this function:

columns()

Idx fs::sim::IntensityMap::columns ( ) const

inlinenodiscard

Number of columns in this extent.

Returns

Number of columns in this extent

Here is the caller graph for this function:

fireSize()

MathSize fs::sim::IntensityMap::fireSize ( ) const

nodiscard

Size of the fire represented by this.

Returns

Size of the fire represented by this

hasBurned()

bool fs::sim::IntensityMap::hasBurned ( const Location & location ) const

nodiscard

Whether or not the Location with the given hash can burn.

Parameters

hash	Hash for Location to check

Returns

Whether or not the Location with the given hash can burn

Here is the call graph for this function:

Here is the caller graph for this function:

ignite()

void fs::sim::IntensityMap::ignite

(

const Location &

location

)

Mark given location as burned.

Parameters

location

Location to burn

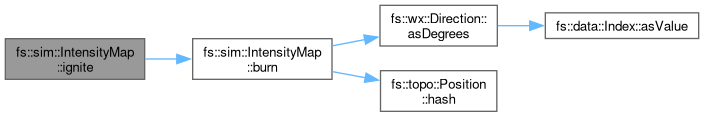

Here is the call graph for this function:

isSurrounded()

bool fs::sim::IntensityMap::isSurrounded ( const Location & location ) const

nodiscard

Whether or not all Locations surrounding the given Location are burned.

Parameters

location

Location to check

Returns

Whether or not all Locations surrounding the given Location are burned

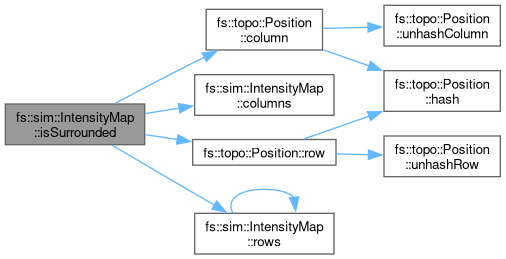

Here is the call graph for this function:

rows()

Idx fs::sim::IntensityMap::rows ( ) const

inlinenodiscard

Number of rows in this extent.

Returns

Number of rows in this extent

Here is the call graph for this function:

Here is the caller graph for this function:

save()

void fs::sim::IntensityMap::save	(	const string &	dir,
		const string &	base_name ) const

Save contents to an ASCII file.

Parameters

dir	Directory to save to
base_name	Base file name to save to

---

The documentation for this class was generated from the following files:

• firestarr/src/cpp/IntensityMap.h
• firestarr/src/cpp/IntensityMap.cpp
