A GridData<T, V, const vector<T>> that cannot change once initialized. More...

#include <ConstantGrid.h>

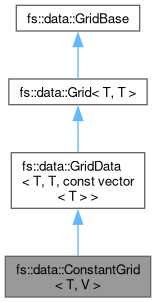

Inheritance diagram for fs::data::ConstantGrid< T, V >:

[legend]

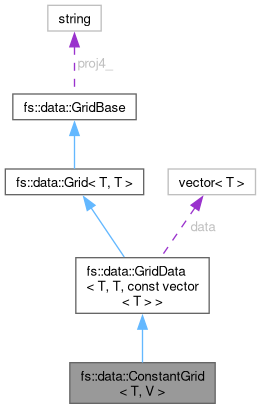

Collaboration diagram for fs::data::ConstantGrid< T, V >:

[legend]

Public Member Functions
constexpr T	at (const Location &location) const noexcept override
	Value for grid at given Location.

template<class P >
constexpr T	at (const Position< P > &position) const noexcept

	~ConstantGrid ()=default
	Value for grid at given Location.

	ConstantGrid (const ConstantGrid &rhs) noexcept=delete

	ConstantGrid (ConstantGrid &&rhs) noexcept=delete

ConstantGrid &	operator= (const ConstantGrid &rhs) noexcept=delete

ConstantGrid &	operator= (ConstantGrid &&rhs) noexcept=delete

	ConstantGrid (const MathSize cell_size, const Idx rows, const Idx columns, const V nodata_input, const T nodata_value, const MathSize xllcorner, const MathSize yllcorner, const MathSize xurcorner, const MathSize yurcorner, string &&proj4, vector< T > &&data)
	Constructor.

	ConstantGrid (const MathSize cell_size, const Idx rows, const Idx columns, const V nodata_input, const T nodata_value, const MathSize xllcorner, const MathSize yllcorner, const string &proj4, const T &initialization_value) noexcept
	Constructor.

Public Member Functions inherited from fs::data::GridData< T, T, const vector< T > >
	GridData (const MathSize cell_size, const Idx rows, const Idx columns, const T nodata_input, const T nodata_value, const MathSize xllcorner, const MathSize yllcorner, const MathSize xurcorner, const MathSize yurcorner, string &&proj4, const vector< T > &&data)
	Constructor.

	GridData (const GridData &rhs)
	Copy constructor.

	GridData (GridData &&rhs) noexcept
	Move constructor.

GridData &	operator= (const GridData &rhs) noexcept
	Copy assignment.

GridData &	operator= (GridData &&rhs) noexcept
	Move assignment.

size_t	size () const
	Size of data structure storing values.

string	saveToFileWithoutRetry (const string &dir, const string &base_name, std::function< R(T value)> convert, const R no_data) const
	Save GridMap contents to file based on settings.

string	saveToFileWithRetry (const string &dir, const string &base_name, std::function< R(T value)> convert, const R no_data) const
	Save GridMap contents to file based on settings.

string	saveToFile (const string &dir, const string &base_name, std::function< R(T value)> convert, const R no_data) const
	Save GridMap contents to file based on settings.

string	saveToFile (const string &dir, const string &base_name, std::function< R(T value)> convert) const
	Save GridMap contents to file based on settings.

string	saveToFile (const string &dir, const string &base_name) const
	Save GridMap contents to file based on settings.

Public Member Functions inherited from fs::data::Grid< T, T >
constexpr Idx	rows () const noexcept
	Number of rows in the GridBase.

constexpr Idx	columns () const noexcept
	Number of columns in the GridBase.

constexpr T	nodataInput () const noexcept
	Value used for grid locations that have no data.

constexpr T	nodataValue () const noexcept
	Value representing no data.

T	at (const Position< P > &position) const

virtual void	set (const Location &location, T value)=0
	Set value for grid at given Location.

void	set (const Position< P > &position, const T value)

Public Member Functions inherited from fs::data::GridBase
	GridBase (GridBase &&rhs) noexcept=default
	Move constructor.

	GridBase (const GridBase &rhs)=default
	Copy constructor.

GridBase &	operator= (const GridBase &rhs)=default
	Copy assignment.

GridBase &	operator= (GridBase &&rhs) noexcept=default
	Move assignment.

constexpr MathSize	cellSize () const noexcept
	Cell size used for GridBase.

constexpr FullIdx	calculateRows () const noexcept
	Number of rows in the GridBase.

constexpr FullIdx	calculateColumns () const noexcept
	Number of columns in the GridBase.

constexpr MathSize	xllcorner () const noexcept
	Lower left corner X coordinate in meters.

constexpr MathSize	yllcorner () const noexcept
	Lower left corner Y coordinate in meters.

constexpr MathSize	xurcorner () const noexcept
	Upper right corner X coordinate in meters.

constexpr MathSize	yurcorner () const noexcept
	Upper right corner Y coordinate in meters.

constexpr const string &	proj4 () const noexcept
	Proj4 string defining coordinate system for this grid. Must be a UTM projection.

	GridBase (MathSize cell_size, MathSize xllcorner, MathSize yllcorner, MathSize xurcorner, MathSize yurcorner, string &&proj4) noexcept
	Constructor.

	GridBase () noexcept
	Default constructor.

void	createPrj (const string &dir, const string &base_name) const
	Create .prj file in directory with base name for file.

unique_ptr< Coordinates >	findCoordinates (const topo::Point &point, bool flipped) const
	Find Coordinates for Point.

unique_ptr< FullCoordinates >	findFullCoordinates (const topo::Point &point, bool flipped) const
	Find FullCoordinates for Point.

Static Public Member Functions
static ConstantGrid< T, V > *	readTiff (const string &filename, TIFF tif, GTIF gtif, const topo::Point &point, std::function< T(V, V)> convert)
	Read a section of a TIFF into a ConstantGrid.

static ConstantGrid< T, V > *	readTiff (const string &filename, const topo::Point &point, std::function< T(V, V)> convert)
	Read a section of a TIFF into a ConstantGrid.

static ConstantGrid< T, T > *	readTiff (const string &filename, const topo::Point &point)
	Read a section of a TIFF into a ConstantGrid.

Protected Member Functions
tuple< Idx, Idx, Idx, Idx >	dataBounds () const override

Protected Member Functions inherited from fs::data::GridData< T, T, const vector< T > >
string	saveToAsciiFile (const string &dir, const string &base_name, std::function< R(T value)> convert, const R no_data) const
	Save GridMap contents to .asc file.

string	saveToTiffFile (const string &dir, const string &base_name, std::function< R(T value)> convert, const R no_data) const
	Save GridMap contents to .tif file.

Protected Member Functions inherited from fs::data::Grid< T, T >
	Grid (const MathSize cell_size, const Idx rows, const Idx columns, const T nodata_input, const T nodata_value, const MathSize xllcorner, const MathSize yllcorner, const MathSize xurcorner, const MathSize yurcorner, string &&proj4) noexcept
	Constructor.

	Grid (const GridBase &grid_info, T no_data) noexcept
	Construct based on GridBase and no data value.

Private Member Functions
	ConstantGrid (const GridBase &grid_info, const V nodata_input, const T nodata_value, vector< T > &&values)
	Constructor.

Additional Inherited Members
Public Attributes inherited from fs::data::GridData< T, T, const vector< T > >
const vector< T >	data
	Structure that holds data represented by this GridData.

Detailed Description

template<class T, class V = T>
class fs::data::ConstantGrid< T, V >

A GridData<T, V, const vector<T>> that cannot change once initialized.

Template Parameters

T	The initialization value type.
V	The initialized value type.

Constructor & Destructor Documentation

◆ ~ConstantGrid()

template<class T , class V = T>

fs::data::ConstantGrid< T, V >::~ConstantGrid ( )

default

Value for grid at given Location.

Parameters

hash	HashSize hash for Location to get value for.

Returns: Value at grid Location.

Throw an error because ConstantGrid can't change values.

◆ ConstantGrid() [1/3]

template<class T , class V = T>

fs::data::ConstantGrid< T, V >::ConstantGrid	(	const MathSize	cell_size,
		const Idx	rows,
		const Idx	columns,
		const V	nodata_input,
		const T	nodata_value,
		const MathSize	xllcorner,
		const MathSize	yllcorner,
		const MathSize	xurcorner,
		const MathSize	yurcorner,
		string &&	proj4,
		vector< T > &&	data )

inline

Constructor.

Parameters

cell_size	Cell width and height (m)
rows	Number of rows
columns	Number of columns
nodata_input	Value that represents no data for type V
nodata_value	Value that represents no data for type T
xllcorner	Lower left corner X coordinate (m)
yllcorner	Lower left corner Y coordinate (m)
xurcorner	Upper right corner X coordinate (m)
yurcorner	Upper right corner Y coordinate (m)
proj4	Proj4 projection definition
data	Data to set as grid data

◆ ConstantGrid() [2/3]

template<class T , class V = T>

fs::data::ConstantGrid< T, V >::ConstantGrid	(	const MathSize	cell_size,
		const Idx	rows,
		const Idx	columns,
		const V	nodata_input,
		const T	nodata_value,
		const MathSize	xllcorner,
		const MathSize	yllcorner,
		const string &	proj4,
		const T &	initialization_value )

inlinenoexcept

Constructor.

Parameters

cell_size	Cell width and height (m)
rows	Number of rows
columns	Number of columns
nodata_input	Value that represents no data for type V
nodata_value	Value that represents no data for type T
xllcorner	Lower left corner X coordinate (m)
yllcorner	Lower left corner Y coordinate (m)
proj4	Proj4 projection definition
initialization_value	Value to initialize entire grid with

◆ ConstantGrid() [3/3]

template<class T , class V = T>

fs::data::ConstantGrid< T, V >::ConstantGrid	(	const GridBase &	grid_info,
		const V	nodata_input,
		const T	nodata_value,
		vector< T > &&	values )

inlineprivate

Constructor.

Parameters

grid_info	GridBase defining Grid area
nodata_input	Value that represents no data for type V
nodata_value	Value that represents no data for type T
values	Values to initialize grid with

Member Function Documentation

◆ at()

template<class T , class V = T>

T fs::data::ConstantGrid< T, V >::at ( const Location & location ) const

inlinenodiscardconstexproverridevirtualnoexcept

Value for grid at given Location.

Parameters

location Location to get value for.

Returns: Value at grid Location.

Implements fs::data::Grid< T, T >.

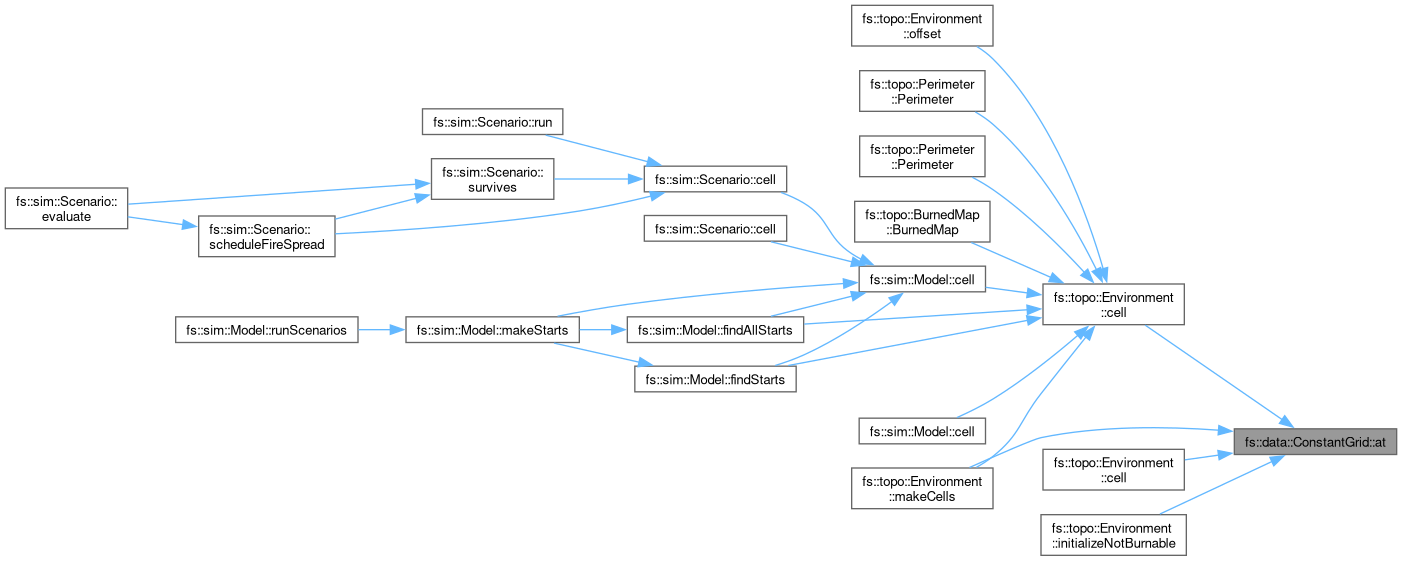

Here is the caller graph for this function:

◆ dataBounds()

template<class T , class V = T>

tuple< Idx, Idx, Idx, Idx > fs::data::ConstantGrid< T, V >::dataBounds ( ) const

inlineoverrideprotectedvirtual

Implements fs::data::GridData< T, T, const vector< T > >.

◆ readTiff() [1/3]

template<class T , class V = T>

static ConstantGrid< T, T > * fs::data::ConstantGrid< T, V >::readTiff	(	const string &	filename,
		const topo::Point &	point )

inlinestaticnodiscard

Read a section of a TIFF into a ConstantGrid.

Parameters

filename	File name to read from
point	Point to center ConstantGrid on

Returns: ConstantGrid containing clipped data for TIFF

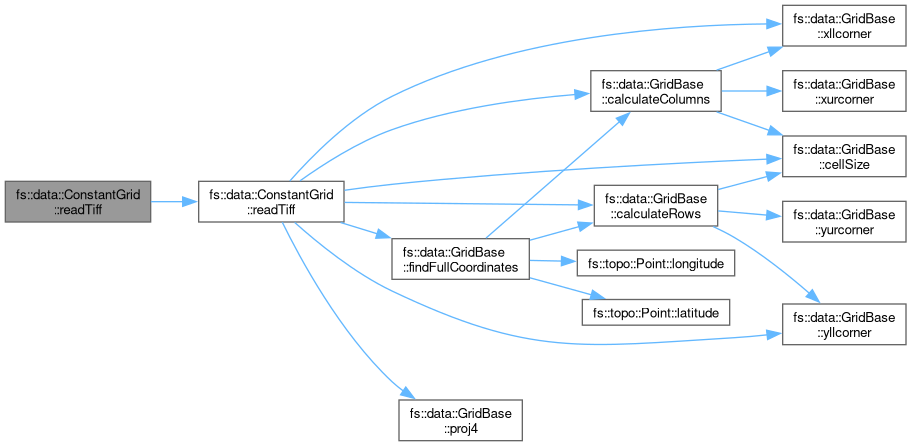

Here is the call graph for this function:

◆ readTiff() [2/3]

template<class T , class V = T>

static ConstantGrid< T, V > * fs::data::ConstantGrid< T, V >::readTiff	(	const string &	filename,
		const topo::Point &	point,
		std::function< T(V, V)>	convert )

inlinestaticnodiscard

Read a section of a TIFF into a ConstantGrid.

Parameters

filename	File name to read from
point	Point to center ConstantGrid on
convert	Function taking V and nodata V value that returns T

Returns: ConstantGrid containing clipped data for TIFF

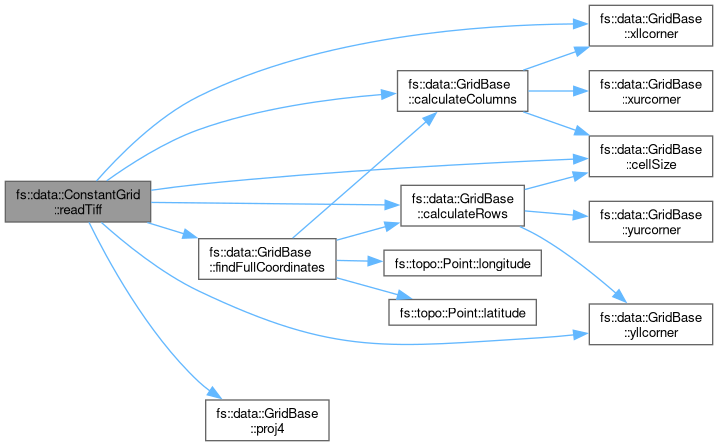

Here is the call graph for this function:

◆ readTiff() [3/3]

template<class T , class V = T>

static ConstantGrid< T, V > * fs::data::ConstantGrid< T, V >::readTiff	(	const string &	filename,
		TIFF *	tif,
		GTIF *	gtif,
		const topo::Point &	point,
		std::function< T(V, V)>	convert )

inlinestaticnodiscard

Read a section of a TIFF into a ConstantGrid.

Parameters

filename	File name to read from
tif	Pointer to open TIFF denoted by filename
gtif	Pointer to open geotiff denoted by filename
point	Point to center ConstantGrid on
convert	Function taking int and nodata int value that returns T

Returns: ConstantGrid containing clipped data for TIFF

Here is the call graph for this function:

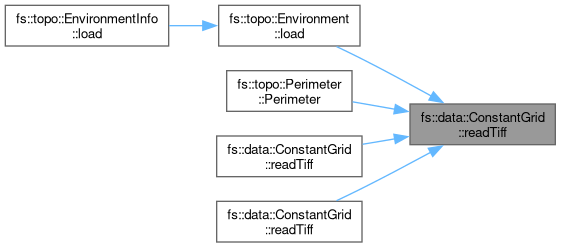

Here is the caller graph for this function:

The documentation for this class was generated from the following file:

firestarr/src/cpp/ConstantGrid.h
