fs::data::Grid< T, V > Class Template Reference

A GridBase with an associated type of data. More...

#include <Grid.h>

Inheritance diagram for fs::data::Grid< T, V >:

Collaboration diagram for fs::data::Grid< T, V >:

Public Member Functions
constexpr Idx	rows () const noexcept
	Number of rows in the GridBase.
constexpr Idx	columns () const noexcept
	Number of columns in the GridBase.
constexpr V	nodataInput () const noexcept
	Value used for grid locations that have no data.
constexpr T	nodataValue () const noexcept
	Value representing no data.
virtual T	at (const Location &location) const =0
	Value for grid at given Location.
template<class P >
T	at (const Position< P > &position) const
virtual void	set (const Location &location, T value)=0
	Set value for grid at given Location.
template<class P >
void	set (const Position< P > &position, const T value)
Public Member Functions inherited from fs::data::GridBase
	GridBase (GridBase &&rhs) noexcept=default
	Move constructor.
	GridBase (const GridBase &rhs)=default
	Copy constructor.
GridBase &	operator= (const GridBase &rhs)=default
	Copy assignment.
GridBase &	operator= (GridBase &&rhs) noexcept=default
	Move assignment.
constexpr MathSize	cellSize () const noexcept
	Cell size used for GridBase.
constexpr FullIdx	calculateRows () const noexcept
	Number of rows in the GridBase.
constexpr FullIdx	calculateColumns () const noexcept
	Number of columns in the GridBase.
constexpr MathSize	xllcorner () const noexcept
	Lower left corner X coordinate in meters.
constexpr MathSize	yllcorner () const noexcept
	Lower left corner Y coordinate in meters.
constexpr MathSize	xurcorner () const noexcept
	Upper right corner X coordinate in meters.
constexpr MathSize	yurcorner () const noexcept
	Upper right corner Y coordinate in meters.
constexpr const string &	proj4 () const noexcept
	Proj4 string defining coordinate system for this grid. Must be a UTM projection.
	GridBase (MathSize cell_size, MathSize xllcorner, MathSize yllcorner, MathSize xurcorner, MathSize yurcorner, string &&proj4) noexcept
	Constructor.
	GridBase () noexcept
	Default constructor.
void	createPrj (const string &dir, const string &base_name) const
	Create .prj file in directory with base name for file.
unique_ptr< Coordinates >	findCoordinates (const topo::Point &point, bool flipped) const
	Find Coordinates for Point.
unique_ptr< FullCoordinates >	findFullCoordinates (const topo::Point &point, bool flipped) const
	Find FullCoordinates for Point.

Protected Member Functions
	Grid (const MathSize cell_size, const Idx rows, const Idx columns, const V nodata_input, const T nodata_value, const MathSize xllcorner, const MathSize yllcorner, const MathSize xurcorner, const MathSize yurcorner, string &&proj4) noexcept
	Constructor.
	Grid (const GridBase &grid_info, V no_data) noexcept
	Construct based on GridBase and no data value.

Private Attributes
V	nodata_input_
	Value used to represent no data at a Location.
T	nodata_value_
	Value to use for representing no data at a Location.
Idx	rows_ {}
	Number of rows in the grid.
Idx	columns_ {}
	Number of columns in the grid.

Detailed Description

template<class T, class V = T>
class fs::data::Grid< T, V >

A GridBase with an associated type of data.

Template Parameters

T	Type of data after conversion from initialization type.
V	Type of data used as an input when initializing.

Constructor & Destructor Documentation

Grid() [1/2]

template<class T , class V = T>

fs::data::Grid< T, V >::Grid ( const MathSize cell_size, const Idx rows, const Idx columns, const V nodata_input, const T nodata_value, const MathSize xllcorner, const MathSize yllcorner, const MathSize xurcorner, const MathSize yurcorner, string && proj4 )

inlineprotectednoexcept

Constructor.

Parameters

cell_size	Cell width and height (m)
rows	Number of rows
columns	Number of columns
nodata_input	Value that represents no data for type V
nodata_value	Value that represents no data for type T
nodata	Integer value that represents no data
xllcorner	Lower left corner X coordinate (m)
yllcorner	Lower left corner Y coordinate (m)
proj4	Proj4 projection definition

Grid() [2/2]

template<class T , class V = T>

fs::data::Grid< T, V >::Grid ( const GridBase & grid_info, V no_data )

inlineprotectednoexcept

Construct based on GridBase and no data value.

Parameters

grid_info	GridBase defining Grid area
no_data	Value that represents no data

Member Function Documentation

at()

template<class T , class V = T>

virtual T fs::data::Grid< T, V >::at ( const Location & location ) const

nodiscardpure virtual

Value for grid at given Location.

Parameters

location

Location to get value for.

Returns

Value at grid Location.

Implemented in fs::data::ConstantGrid< T, V >, fs::data::GridMap< T, V >, fs::data::GridMap< size_t >, and fs::data::GridMap< unsigned char >.

Here is the call graph for this function:

columns()

template<class T , class V = T>

Idx fs::data::Grid< T, V >::columns ( ) const

inlinenodiscardconstexprnoexcept

Number of columns in the GridBase.

Returns

Number of columns in the GridBase.

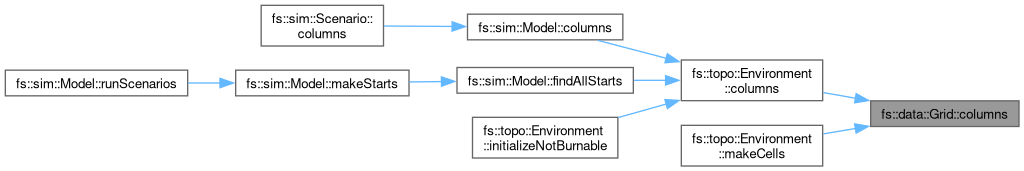

Here is the caller graph for this function:

nodataInput()

template<class T , class V = T>

V fs::data::Grid< T, V >::nodataInput ( ) const

inlinenodiscardconstexprnoexcept

Value used for grid locations that have no data.

Returns

Value used for grid locations that have no data.

nodataValue()

template<class T , class V = T>

T fs::data::Grid< T, V >::nodataValue ( ) const

inlineconstexprnoexcept

Value representing no data.

Returns

Value representing no data

rows()

template<class T , class V = T>

Idx fs::data::Grid< T, V >::rows ( ) const

inlinenodiscardconstexprnoexcept

Number of rows in the GridBase.

Returns

Number of rows in the GridBase.

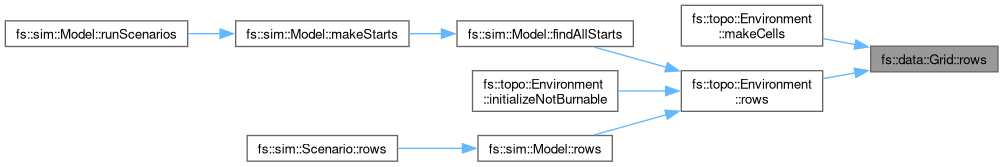

Here is the caller graph for this function:

set()

template<class T , class V = T>

virtual void fs::data::Grid< T, V >::set ( const Location & location, T value )

pure virtual

Set value for grid at given Location.

Parameters

location	Location to set value for.
value	Value to set at grid Location.

Returns

None

Implemented in fs::data::GridMap< T, V >, fs::data::GridMap< size_t >, and fs::data::GridMap< unsigned char >.

Here is the call graph for this function:

---

The documentation for this class was generated from the following file:

• firestarr/src/cpp/Grid.h
