A FuelBase made of a standard fuel type. More...

#include <StandardFuel.h>

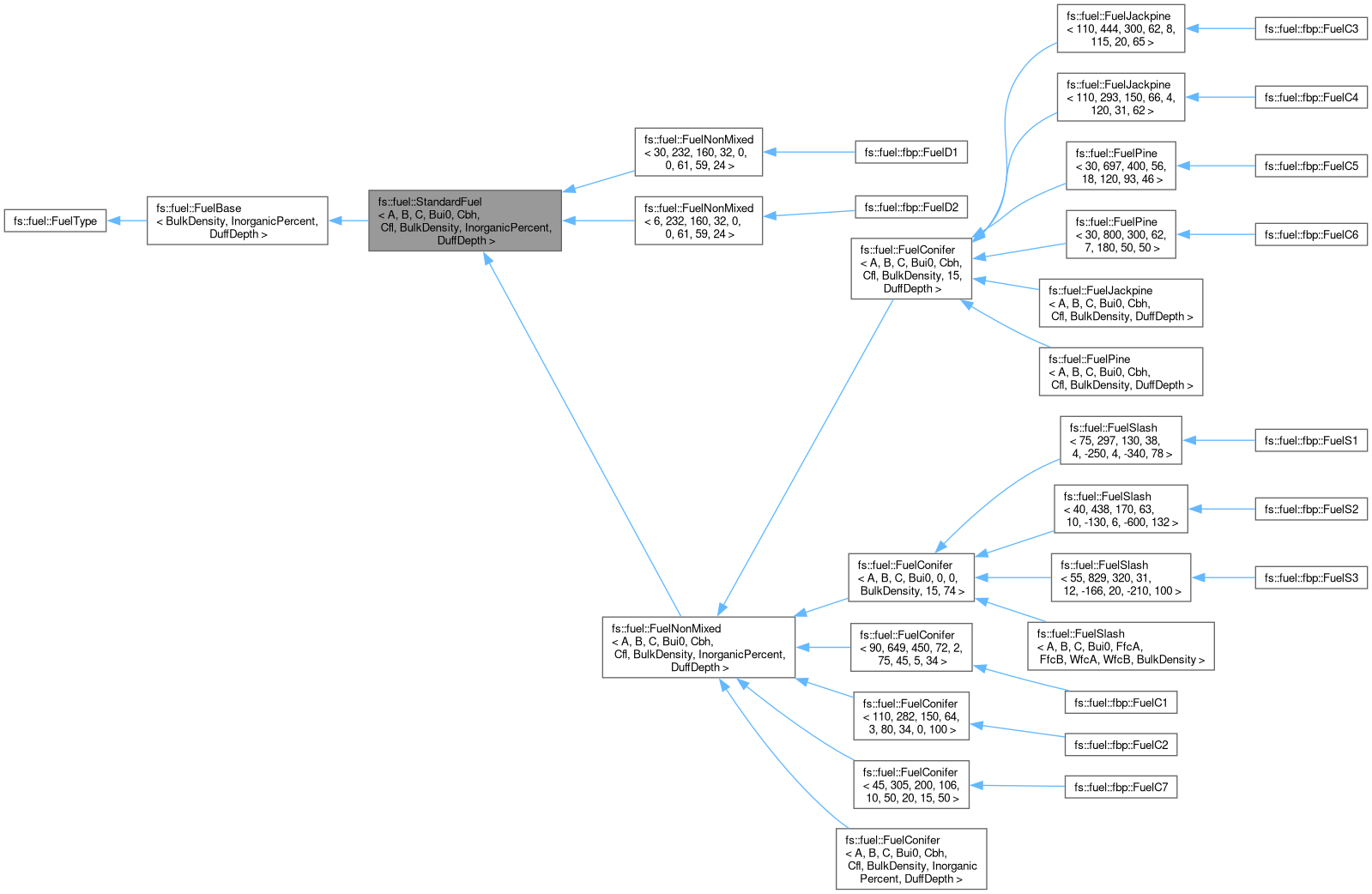

Inheritance diagram for fs::fuel::StandardFuel< A, B, C, Bui0, Cbh, Cfl, BulkDensity, InorganicPercent, DuffDepth >:

[legend]

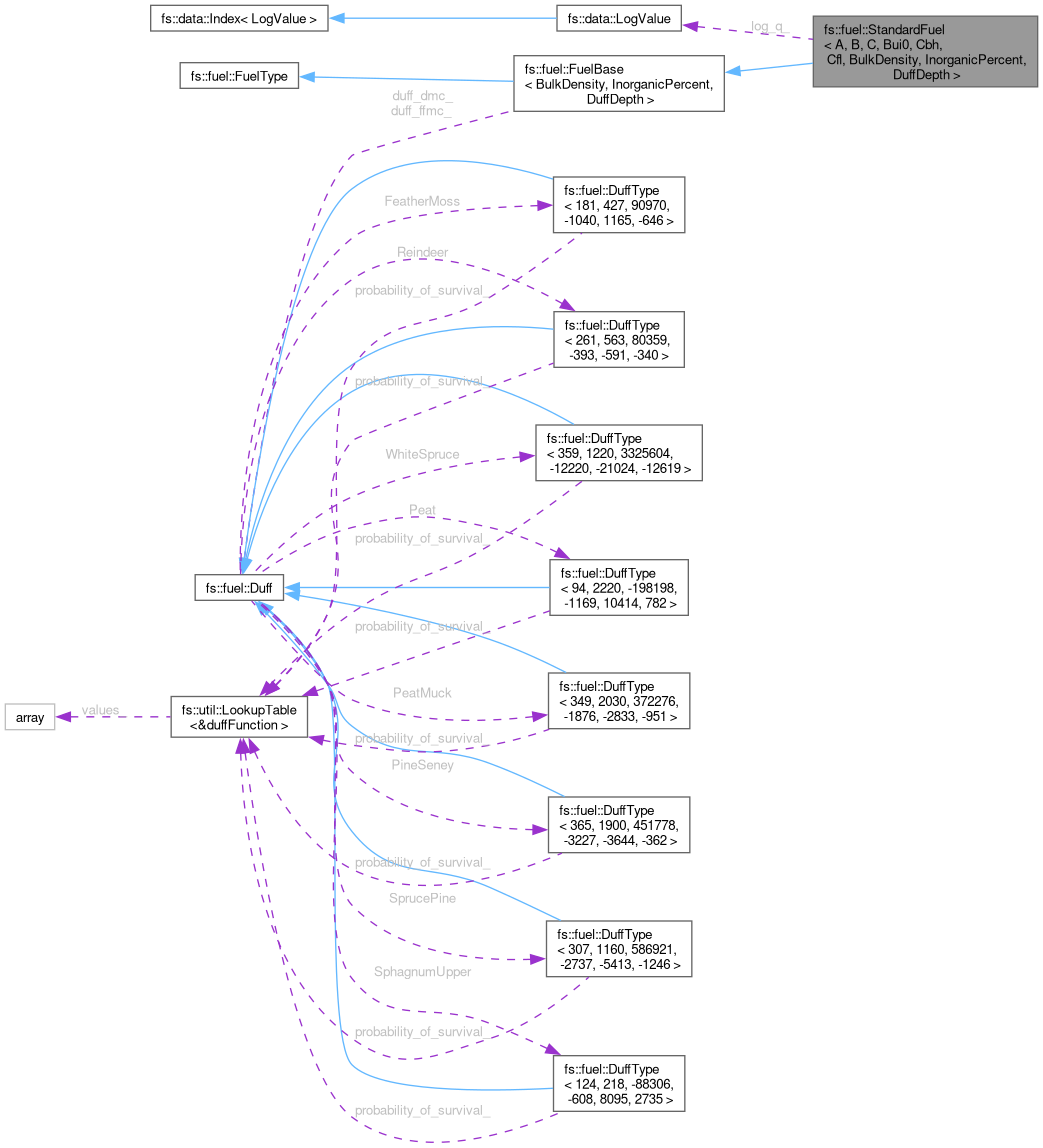

Collaboration diagram for fs::fuel::StandardFuel< A, B, C, Bui0, Cbh, Cfl, BulkDensity, InorganicPercent, DuffDepth >:

[legend]

Public Member Functions
constexpr	StandardFuel (const FuelCodeSize &code, const char name, const bool can_crown, const LogValue log_q, const Duff duff_ffmc, const Duff *duff_dmc) noexcept
	Constructor.

constexpr	StandardFuel (const FuelCodeSize &code, const char name, const bool can_crown, const LogValue log_q, const Duff duff) noexcept
	Constructor.

	StandardFuel (StandardFuel &&rhs) noexcept=delete

	StandardFuel (const StandardFuel &rhs) noexcept=delete

StandardFuel &	operator= (StandardFuel &&rhs) noexcept=delete

StandardFuel &	operator= (const StandardFuel &rhs)=delete

MathSize	rosBasic (const MathSize isi) const noexcept
	Initial rate of spread (m/min) [ST-X-3 eq 26].

virtual MathSize	crownConsumption (const MathSize cfb) const noexcept override
	Crown Fuel Consumption (CFC) (kg/m^2) [ST-X-3 eq 66].

MathSize	limitIsf (const MathSize mu, const MathSize rsf) const noexcept
	ISI with slope influence and zero wind (ISF) [ST-X-3 eq 41].

MathSize	criticalSurfaceIntensity (const SpreadInfo &spread) const noexcept override
	Critical Surface Fire Intensity (CSI) [ST-X-3 eq 56].

MathSize	lengthToBreadth (const MathSize ws) const noexcept override
	Length to Breadth ratio [ST-X-3 eq 79].

MathSize	finalRos (const SpreadInfo &, MathSize, MathSize, const MathSize rss) const noexcept override
	Final rate of spread (m/min)

MathSize	buiEffect (const MathSize bui) const noexcept override
	BUI Effect on surface fire rate of spread [ST-X-3 eq 54].

Public Member Functions inherited from fs::fuel::FuelBase< BulkDensity, InorganicPercent, DuffDepth >
constexpr	FuelBase (const FuelCodeSize &code, const char name, const bool can_crown, const Duff duff_ffmc, const Duff *duff_dmc)
	Constructor.

	FuelBase (FuelBase &&rhs) noexcept=delete

	FuelBase (const FuelBase &rhs)=delete

FuelBase &	operator= (FuelBase &&rhs) noexcept=delete

FuelBase &	operator= (const FuelBase &rhs)=delete

MathSize	crownFractionBurned (const MathSize rss, const MathSize rso) const noexcept override
	Crown Fraction Burned (CFB) [ST-X-3 eq 58].

ThresholdSize	probabilityPeat (const MathSize mc_fraction) const noexcept override
	Calculate probability of burning [Anderson eq 1].

ThresholdSize	survivalProbability (const wx::FwiWeather &wx) const noexcept override
	Survival probability calculated using probability of ony survival based on multiple formulae.

constexpr const Duff *	duffDmcType () const
	Type of duff deeper underground.

constexpr const Duff *	duffFfmcType () const
	Type of duff near the surface.

Public Member Functions inherited from fs::fuel::FuelType
constexpr	FuelType (const FuelCodeSize &code, const char *name, const bool can_crown) noexcept
	Fuel type.

	FuelType (FuelType &&rhs) noexcept=delete

	FuelType (const FuelType &rhs) noexcept=delete

FuelType &	operator= (FuelType &&rhs) noexcept=delete

FuelType &	operator= (const FuelType &rhs) noexcept=delete

constexpr bool	canCrown () const
	Whether or not this fuel can have a crown fire.

virtual MathSize	grass_curing (const int, const wx::FwiWeather &) const
	Grass curing.

virtual MathSize	calculateRos (int nd, const wx::FwiWeather &wx, MathSize isi) const =0
	Calculate rate of spread (m/min)

virtual MathSize	calculateIsf (const SpreadInfo &spread, MathSize isi) const =0
	Calculate ISI with slope influence and zero wind (ISF) [ST-X-3 eq 41/42].

virtual MathSize	surfaceFuelConsumption (const SpreadInfo &spread) const =0
	Surface fuel consumption (SFC) (kg/m^2) [ST-X-3 eq 9-25].

constexpr const char *	name () const
	Name of the fuel.

constexpr FuelCodeSize	code () const
	Code for this fuel type.

Protected Member Functions
MathSize	cbh () const override
	Crown base height (m) [ST-X-3 table 8].

MathSize	cfl () const override
	Crown fuel load (kg/m^2) [ST-X-3 table 8].

Static Protected Member Functions
static constexpr MathSize	bui0 () noexcept
	Average Build-up Index for the fuel type [ST-X-3 table 7].

static constexpr MathSize	a () noexcept
	Rate of spread parameter a [ST-X-3 table 6].

static constexpr MathSize	negB () noexcept
	Negative of rate of spread parameter b [ST-X-3 table 6].

static constexpr MathSize	c () noexcept
	Rate of spread parameter c [ST-X-3 table 6].

static constexpr MathSize	crownRateOfSpread (const MathSize isi, const MathSize fmc) noexcept
	Crown fire spread rate (RSC) (m/min) [ST-X-3 eq 64].

Private Attributes
LogValue	log_q_
	Log value of q [ST-X-3 table 7].

Additional Inherited Members
Static Public Member Functions inherited from fs::fuel::FuelBase< BulkDensity, InorganicPercent, DuffDepth >
static constexpr MathSize	bulkDensity ()
	Duff Bulk Density (kg/m^3) [Anderson table 1].

static constexpr MathSize	inorganicPercent ()
	Inorganic Percent (% / 100) [Anderson table 1].

static constexpr MathSize	duffDepth ()
	DuffDepth Depth of Duff layer (cm) [Anderson table 1].

static constexpr MathSize	ffmcRatio ()
	What fraction of the duff layer should use FFMC to determine moisture.

static constexpr MathSize	dmcRatio ()
	What fraction of the duff layer should use DMC to determine moisture.

Static Public Member Functions inherited from fs::fuel::FuelType
static constexpr FuelCodeSize	safeCode (const FuelType *fuel)
	Convert FuelType to its code, or 0 if nullptr.

static constexpr const char *	safeName (const FuelType *fuel)
	Convert FuelType to its name, or 0 if nullptr.

static constexpr MathSize	criticalRos (const MathSize sfc, const MathSize csi)
	Critical rate of spread (m/min)

static constexpr bool	isCrown (const MathSize csi, const MathSize sfi)
	Whether or not this is a crown fire.

Detailed Description

template<int A, int B, int C, int Bui0, int Cbh, int Cfl, int BulkDensity, int InorganicPercent, int DuffDepth>
class fs::fuel::StandardFuel< A, B, C, Bui0, Cbh, Cfl, BulkDensity, InorganicPercent, DuffDepth >

A FuelBase made of a standard fuel type.

Template Parameters

A	Rate of spread parameter a [ST-X-3 table 6]
B	Rate of spread parameter b * 10000 [ST-X-3 table 6]
C	Rate of spread parameter c * 100 [ST-X-3 table 6]
Bui0	Average Build-up Index for the fuel type [ST-X-3 table 7]
Cbh	Crown base height (m) [ST-X-3 table 8]
Cfl	Crown fuel load (kg/m^2) [ST-X-3 table 8]
BulkDensity	Duff Bulk Density (kg/m^3) [Anderson table 1] * 1000
InorganicPercent	Inorganic percent of Duff layer (%) [Anderson table 1]
DuffDepth	Depth of Duff layer (cm * 10) [Anderson table 1]

Constructor & Destructor Documentation

◆ StandardFuel() [1/2]

template<int A, int B, int C, int Bui0, int Cbh, int Cfl, int BulkDensity, int InorganicPercent, int DuffDepth>

fs::fuel::StandardFuel< A, B, C, Bui0, Cbh, Cfl, BulkDensity, InorganicPercent, DuffDepth >::StandardFuel	(	const FuelCodeSize &	code,
		const char *	name,
		const bool	can_crown,
		const LogValue	log_q,
		const Duff *	duff_ffmc,
		const Duff *	duff_dmc )

inlineconstexprnoexcept

Constructor.

Parameters

code	Code to identify fuel with
name	Name of the fuel
can_crown	Whether or not this fuel type can have a crown fire
log_q	Log value of q [ST-X-3 table 7]
duff_ffmc	Type of duff near the surface
duff_dmc	Type of duff deeper underground

◆ StandardFuel() [2/2]

template<int A, int B, int C, int Bui0, int Cbh, int Cfl, int BulkDensity, int InorganicPercent, int DuffDepth>

fs::fuel::StandardFuel< A, B, C, Bui0, Cbh, Cfl, BulkDensity, InorganicPercent, DuffDepth >::StandardFuel	(	const FuelCodeSize &	code,
		const char *	name,
		const bool	can_crown,
		const LogValue	log_q,
		const Duff *	duff )

inlineconstexprnoexcept

Constructor.

Parameters

code	Code to identify fuel with
name	Name of the fuel
can_crown	Whether or not this fuel type can have a crown fire
log_q	Log value of q [ST-X-3 table 7]
duff	Type of duff near the surface and deeper underground

Member Function Documentation

◆ a()

template<int A, int B, int C, int Bui0, int Cbh, int Cfl, int BulkDensity, int InorganicPercent, int DuffDepth>

static constexpr MathSize fs::fuel::StandardFuel< A, B, C, Bui0, Cbh, Cfl, BulkDensity, InorganicPercent, DuffDepth >::a ( )

inlinestaticnodiscardconstexprprotectednoexcept

Rate of spread parameter a [ST-X-3 table 6].

Returns: Rate of spread parameter a [ST-X-3 table 6]

Here is the caller graph for this function:

◆ bui0()

template<int A, int B, int C, int Bui0, int Cbh, int Cfl, int BulkDensity, int InorganicPercent, int DuffDepth>

static constexpr MathSize fs::fuel::StandardFuel< A, B, C, Bui0, Cbh, Cfl, BulkDensity, InorganicPercent, DuffDepth >::bui0 ( )

inlinestaticnodiscardconstexprprotectednoexcept

Average Build-up Index for the fuel type [ST-X-3 table 7].

Returns: Average Build-up Index for the fuel type [ST-X-3 table 7]

Here is the caller graph for this function:

◆ buiEffect()

template<int A, int B, int C, int Bui0, int Cbh, int Cfl, int BulkDensity, int InorganicPercent, int DuffDepth>

MathSize fs::fuel::StandardFuel< A, B, C, Bui0, Cbh, Cfl, BulkDensity, InorganicPercent, DuffDepth >::buiEffect ( const MathSize bui ) const

inlinenodiscardoverridevirtualnoexcept

BUI Effect on surface fire rate of spread [ST-X-3 eq 54].

Parameters

bui	Build-up Index

Returns: BUI Effect on surface fire rate of spread [ST-X-3 eq 54]

Implements fs::fuel::FuelType.

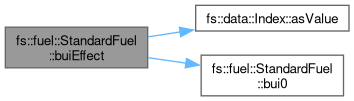

Here is the call graph for this function:

◆ c()

template<int A, int B, int C, int Bui0, int Cbh, int Cfl, int BulkDensity, int InorganicPercent, int DuffDepth>

static constexpr MathSize fs::fuel::StandardFuel< A, B, C, Bui0, Cbh, Cfl, BulkDensity, InorganicPercent, DuffDepth >::c ( )

inlinestaticnodiscardconstexprprotectednoexcept

Rate of spread parameter c [ST-X-3 table 6].

Returns: Rate of spread parameter c [ST-X-3 table 6]

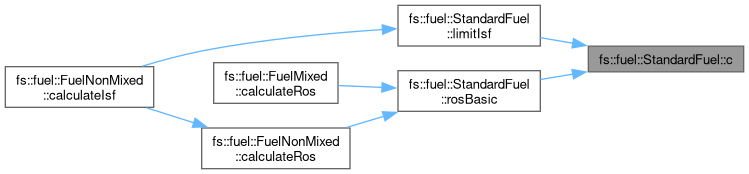

Here is the caller graph for this function:

◆ cbh()

template<int A, int B, int C, int Bui0, int Cbh, int Cfl, int BulkDensity, int InorganicPercent, int DuffDepth>

MathSize fs::fuel::StandardFuel< A, B, C, Bui0, Cbh, Cfl, BulkDensity, InorganicPercent, DuffDepth >::cbh ( ) const

inlinenodiscardoverrideprotectedvirtual

Crown base height (m) [ST-X-3 table 8].

Returns: Crown base height (m) [ST-X-3 table 8]

Implements fs::fuel::FuelType.

Here is the caller graph for this function:

◆ cfl()

template<int A, int B, int C, int Bui0, int Cbh, int Cfl, int BulkDensity, int InorganicPercent, int DuffDepth>

MathSize fs::fuel::StandardFuel< A, B, C, Bui0, Cbh, Cfl, BulkDensity, InorganicPercent, DuffDepth >::cfl ( ) const

inlinenodiscardoverrideprotectedvirtual

Crown fuel load (kg/m^2) [ST-X-3 table 8].

Returns: Crown fuel load (kg/m^2) [ST-X-3 table 8]

Implements fs::fuel::FuelType.

Here is the caller graph for this function:

◆ criticalSurfaceIntensity()

template<int A, int B, int C, int Bui0, int Cbh, int Cfl, int BulkDensity, int InorganicPercent, int DuffDepth>

MathSize fs::fuel::StandardFuel< A, B, C, Bui0, Cbh, Cfl, BulkDensity, InorganicPercent, DuffDepth >::criticalSurfaceIntensity ( const SpreadInfo & spread ) const

inlinenodiscardoverridevirtualnoexcept

Critical Surface Fire Intensity (CSI) [ST-X-3 eq 56].

Parameters

spread SpreadInfo to use in calculation

Returns: Critical Surface Fire Intensity (CSI) [ST-X-3 eq 56]

Implements fs::fuel::FuelType.

Here is the call graph for this function:

◆ crownConsumption()

template<int A, int B, int C, int Bui0, int Cbh, int Cfl, int BulkDensity, int InorganicPercent, int DuffDepth>

virtual MathSize fs::fuel::StandardFuel< A, B, C, Bui0, Cbh, Cfl, BulkDensity, InorganicPercent, DuffDepth >::crownConsumption ( const MathSize cfb ) const

inlineoverridevirtualnoexcept

Crown Fuel Consumption (CFC) (kg/m^2) [ST-X-3 eq 66].

Parameters

cfb	Crown Fraction Burned (CFB) [ST-X-3 eq 58]

Returns: Crown Fuel Consumption (CFC) (kg/m^2) [ST-X-3 eq 66]

Implements fs::fuel::FuelType.

Reimplemented in fs::fuel::FuelMixed< A, B, C, Bui0, RosMultiplier, PercentMixed, BulkDensity, InorganicPercent, DuffDepth >, fs::fuel::FuelMixed< 110, 282, 150, 50, RosMultiplier, RatioMixed, 108, 25, 50 >, and fs::fuel::FuelMixed< A, B, C, Bui0, RosMultiplier, PercentDeadFir, 61, 15, 75 >.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ crownRateOfSpread()

template<int A, int B, int C, int Bui0, int Cbh, int Cfl, int BulkDensity, int InorganicPercent, int DuffDepth>

static constexpr MathSize fs::fuel::StandardFuel< A, B, C, Bui0, Cbh, Cfl, BulkDensity, InorganicPercent, DuffDepth >::crownRateOfSpread	(	const MathSize	isi,
		const MathSize	fmc )

inlinestaticnodiscardconstexprprotectednoexcept

Crown fire spread rate (RSC) (m/min) [ST-X-3 eq 64].

Parameters

isi	Initial Spread Index
fmc	Foliar Moisture Content

Returns: Crown fire spread rate (RSC) (m/min) [ST-X-3 eq 64]

◆ finalRos()

template<int A, int B, int C, int Bui0, int Cbh, int Cfl, int BulkDensity, int InorganicPercent, int DuffDepth>

MathSize fs::fuel::StandardFuel< A, B, C, Bui0, Cbh, Cfl, BulkDensity, InorganicPercent, DuffDepth >::finalRos	(	const SpreadInfo &	,
		MathSize	,
		MathSize	,
		const MathSize	rss ) const

inlineoverridevirtualnoexcept

Final rate of spread (m/min)

Parameters

rss	Surface Rate of spread (ROS) (m/min) [ST-X-3 eq 55]

Returns: Final rate of spread (m/min)

Implements fs::fuel::FuelType.

◆ lengthToBreadth()

template<int A, int B, int C, int Bui0, int Cbh, int Cfl, int BulkDensity, int InorganicPercent, int DuffDepth>

MathSize fs::fuel::StandardFuel< A, B, C, Bui0, Cbh, Cfl, BulkDensity, InorganicPercent, DuffDepth >::lengthToBreadth ( const MathSize ws ) const

inlinenodiscardoverridevirtualnoexcept

Length to Breadth ratio [ST-X-3 eq 79].

Parameters

ws	Wind Speed (km/h)

Returns: Length to Breadth ratio [ST-X-3 eq 79]

Implements fs::fuel::FuelType.

◆ limitIsf()

template<int A, int B, int C, int Bui0, int Cbh, int Cfl, int BulkDensity, int InorganicPercent, int DuffDepth>

MathSize fs::fuel::StandardFuel< A, B, C, Bui0, Cbh, Cfl, BulkDensity, InorganicPercent, DuffDepth >::limitIsf	(	const MathSize	mu,
		const MathSize	rsf ) const

inlinenodiscardnoexcept

ISI with slope influence and zero wind (ISF) [ST-X-3 eq 41].

Parameters

mu	Multiplier
rsf	Slope-adjusted zero wind rate of spread (RSF) [ST-X-3 eq 40]

Returns: ISI with slope influence and zero wind (ISF) [ST-X-3 eq 41]

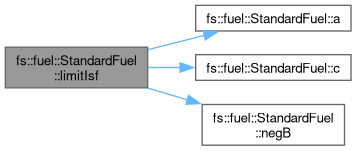

Here is the call graph for this function:

Here is the caller graph for this function:

◆ negB()

template<int A, int B, int C, int Bui0, int Cbh, int Cfl, int BulkDensity, int InorganicPercent, int DuffDepth>

static constexpr MathSize fs::fuel::StandardFuel< A, B, C, Bui0, Cbh, Cfl, BulkDensity, InorganicPercent, DuffDepth >::negB ( )

inlinestaticnodiscardconstexprprotectednoexcept

Negative of rate of spread parameter b [ST-X-3 table 6].

Returns: Negative of rate of spread parameter b [ST-X-3 table 6]

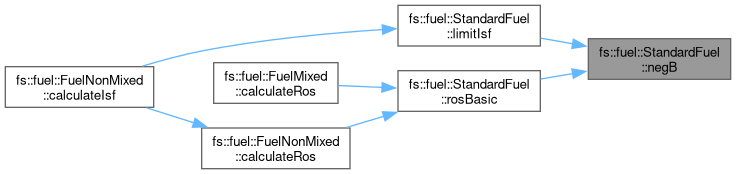

Here is the caller graph for this function:

◆ rosBasic()

template<int A, int B, int C, int Bui0, int Cbh, int Cfl, int BulkDensity, int InorganicPercent, int DuffDepth>

MathSize fs::fuel::StandardFuel< A, B, C, Bui0, Cbh, Cfl, BulkDensity, InorganicPercent, DuffDepth >::rosBasic ( const MathSize isi ) const

inlinenodiscardnoexcept

Initial rate of spread (m/min) [ST-X-3 eq 26].

Parameters

isi	Initial Spread Index

Returns: Initial rate of spread (m/min) [ST-X-3 eq 26]

Here is the call graph for this function:

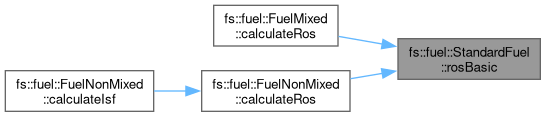

Here is the caller graph for this function:

The documentation for this class was generated from the following file:

firestarr/src/cpp/StandardFuel.h

Public Member Functions

Protected Member Functions

Static Protected Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ StandardFuel() [1/2]

◆ StandardFuel() [2/2]

Member Function Documentation

◆ a()

◆ bui0()

◆ buiEffect()

◆ c()

◆ cbh()

◆ cfl()

◆ criticalSurfaceIntensity()

◆ crownConsumption()

◆ crownRateOfSpread()

◆ finalRos()

◆ lengthToBreadth()

◆ limitIsf()

◆ negB()

◆ rosBasic()
