Base class for all FuelTypes. More...

#include <FuelType.h>

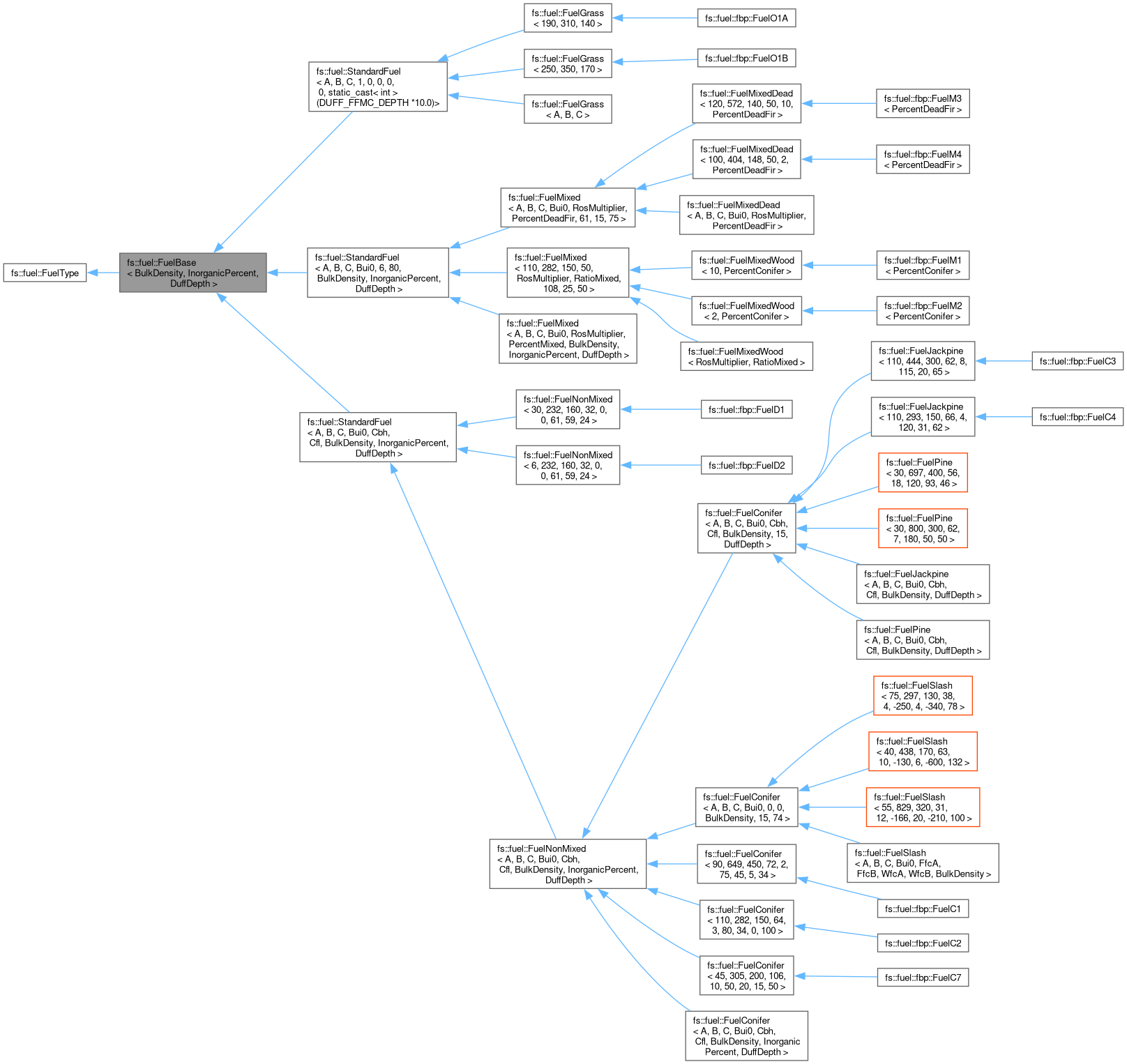

Inheritance diagram for fs::fuel::FuelBase< BulkDensity, InorganicPercent, DuffDepth >:

[legend]

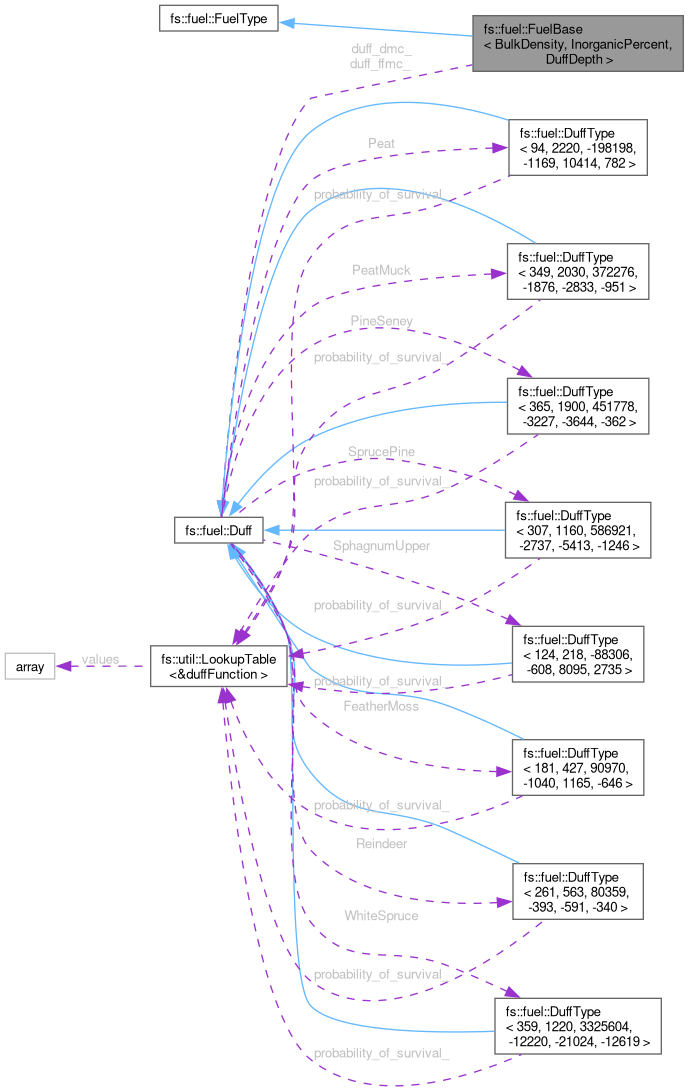

Collaboration diagram for fs::fuel::FuelBase< BulkDensity, InorganicPercent, DuffDepth >:

[legend]

Public Member Functions
constexpr	FuelBase (const FuelCodeSize &code, const char name, const bool can_crown, const Duff duff_ffmc, const Duff *duff_dmc)
	Constructor.

	FuelBase (FuelBase &&rhs) noexcept=delete

	FuelBase (const FuelBase &rhs)=delete

FuelBase &	operator= (FuelBase &&rhs) noexcept=delete

FuelBase &	operator= (const FuelBase &rhs)=delete

MathSize	crownFractionBurned (const MathSize rss, const MathSize rso) const noexcept override
	Crown Fraction Burned (CFB) [ST-X-3 eq 58].

ThresholdSize	probabilityPeat (const MathSize mc_fraction) const noexcept override
	Calculate probability of burning [Anderson eq 1].

ThresholdSize	survivalProbability (const wx::FwiWeather &wx) const noexcept override
	Survival probability calculated using probability of ony survival based on multiple formulae.

constexpr const Duff *	duffDmcType () const
	Type of duff deeper underground.

constexpr const Duff *	duffFfmcType () const
	Type of duff near the surface.

Public Member Functions inherited from fs::fuel::FuelType
virtual MathSize	cfl () const =0
	Crown fuel load (kg/m^2) [ST-X-3 table 8].

constexpr	FuelType (const FuelCodeSize &code, const char *name, const bool can_crown) noexcept
	Fuel type.

	FuelType (FuelType &&rhs) noexcept=delete

	FuelType (const FuelType &rhs) noexcept=delete

FuelType &	operator= (FuelType &&rhs) noexcept=delete

FuelType &	operator= (const FuelType &rhs) noexcept=delete

constexpr bool	canCrown () const
	Whether or not this fuel can have a crown fire.

virtual MathSize	grass_curing (const int, const wx::FwiWeather &) const
	Grass curing.

virtual MathSize	cbh () const =0
	Crown base height (m) [ST-X-3 table 8].

virtual MathSize	buiEffect (MathSize bui) const =0
	BUI Effect on surface fire rate of spread [ST-X-3 eq 54].

virtual MathSize	crownConsumption (MathSize cfb) const =0
	Crown Fuel Consumption (CFC) (kg/m^2) [ST-X-3 eq 66].

virtual MathSize	calculateRos (int nd, const wx::FwiWeather &wx, MathSize isi) const =0
	Calculate rate of spread (m/min)

virtual MathSize	calculateIsf (const SpreadInfo &spread, MathSize isi) const =0
	Calculate ISI with slope influence and zero wind (ISF) [ST-X-3 eq 41/42].

virtual MathSize	surfaceFuelConsumption (const SpreadInfo &spread) const =0
	Surface fuel consumption (SFC) (kg/m^2) [ST-X-3 eq 9-25].

virtual MathSize	lengthToBreadth (MathSize ws) const =0
	Length to Breadth ratio [ST-X-3 eq 79].

virtual MathSize	finalRos (const SpreadInfo &spread, MathSize isi, MathSize cfb, MathSize rss) const =0
	Final rate of spread (m/min)

virtual MathSize	criticalSurfaceIntensity (const SpreadInfo &spread) const =0
	Critical Surface Fire Intensity (CSI) [ST-X-3 eq 56].

constexpr const char *	name () const
	Name of the fuel.

constexpr FuelCodeSize	code () const
	Code for this fuel type.

Static Public Member Functions
static constexpr MathSize	bulkDensity ()
	Duff Bulk Density (kg/m^3) [Anderson table 1].

static constexpr MathSize	inorganicPercent ()
	Inorganic Percent (% / 100) [Anderson table 1].

static constexpr MathSize	duffDepth ()
	DuffDepth Depth of Duff layer (cm) [Anderson table 1].

static constexpr MathSize	ffmcRatio ()
	What fraction of the duff layer should use FFMC to determine moisture.

static constexpr MathSize	dmcRatio ()
	What fraction of the duff layer should use DMC to determine moisture.

Static Public Member Functions inherited from fs::fuel::FuelType
static constexpr FuelCodeSize	safeCode (const FuelType *fuel)
	Convert FuelType to its code, or 0 if nullptr.

static constexpr const char *	safeName (const FuelType *fuel)
	Convert FuelType to its name, or 0 if nullptr.

static constexpr MathSize	criticalRos (const MathSize sfc, const MathSize csi)
	Critical rate of spread (m/min)

static constexpr bool	isCrown (const MathSize csi, const MathSize sfi)
	Whether or not this is a crown fire.

Private Attributes
const Duff *	duff_ffmc_
	Type of duff near the surface.

const Duff *	duff_dmc_
	Type of duff deeper underground.

Detailed Description

template<int BulkDensity, int InorganicPercent, int DuffDepth>
class fs::fuel::FuelBase< BulkDensity, InorganicPercent, DuffDepth >

Base class for all FuelTypes.

Template Parameters

BulkDensity	Duff Bulk Density (kg/m^3) [Anderson table 1] * 1000
InorganicPercent	Inorganic percent of Duff layer (%) [Anderson table 1]
DuffDepth	Depth of Duff layer (cm * 10) [Anderson table 1]

Constructor & Destructor Documentation

◆ FuelBase()

template<int BulkDensity, int InorganicPercent, int DuffDepth>

fs::fuel::FuelBase< BulkDensity, InorganicPercent, DuffDepth >::FuelBase	(	const FuelCodeSize &	code,
		const char *	name,
		const bool	can_crown,
		const Duff *	duff_ffmc,
		const Duff *	duff_dmc )

inlineconstexpr

Constructor.

Parameters

code	Code to identify fuel with
name	Name of the fuel
can_crown	Whether or not this fuel type can have a crown fire
duff_ffmc	Type of duff near the surface
duff_dmc	Type of duff deeper underground

Member Function Documentation

◆ bulkDensity()

template<int BulkDensity, int InorganicPercent, int DuffDepth>

static constexpr MathSize fs::fuel::FuelBase< BulkDensity, InorganicPercent, DuffDepth >::bulkDensity ( )

inlinestaticnodiscardconstexpr

Duff Bulk Density (kg/m^3) [Anderson table 1].

Returns: Duff Bulk Density (kg/m^3) [Anderson table 1]

Here is the caller graph for this function:

◆ crownFractionBurned()

template<int BulkDensity, int InorganicPercent, int DuffDepth>

MathSize fs::fuel::FuelBase< BulkDensity, InorganicPercent, DuffDepth >::crownFractionBurned	(	const MathSize	rss,
		const MathSize	rso ) const

inlinenodiscardoverridevirtualnoexcept

Crown Fraction Burned (CFB) [ST-X-3 eq 58].

Parameters

rss	Surface Rate of spread (ROS) (m/min) [ST-X-3 eq 55]
rso	Critical surface fire spread rate (RSO) [ST-X-3 eq 57]

Returns: Crown Fraction Burned (CFB) [ST-X-3 eq 58]

Implements fs::fuel::FuelType.

Here is the call graph for this function:

◆ dmcRatio()

template<int BulkDensity, int InorganicPercent, int DuffDepth>

static constexpr MathSize fs::fuel::FuelBase< BulkDensity, InorganicPercent, DuffDepth >::dmcRatio ( )

inlinestaticnodiscardconstexpr

What fraction of the duff layer should use DMC to determine moisture.

Returns: What fraction of the duff layer should use DMC to determine moisture

Here is the call graph for this function:

Here is the caller graph for this function:

◆ duffDepth()

template<int BulkDensity, int InorganicPercent, int DuffDepth>

static constexpr MathSize fs::fuel::FuelBase< BulkDensity, InorganicPercent, DuffDepth >::duffDepth ( )

inlinestaticnodiscardconstexpr

DuffDepth Depth of Duff layer (cm) [Anderson table 1].

Returns: DuffDepth Depth of Duff layer (cm) [Anderson table 1]

Here is the caller graph for this function:

◆ duffDmcType()

template<int BulkDensity, int InorganicPercent, int DuffDepth>

const Duff * fs::fuel::FuelBase< BulkDensity, InorganicPercent, DuffDepth >::duffDmcType ( ) const

inlinenodiscardconstexpr

Type of duff deeper underground.

Returns: Type of duff deeper underground

Here is the caller graph for this function:

◆ duffFfmcType()

template<int BulkDensity, int InorganicPercent, int DuffDepth>

const Duff * fs::fuel::FuelBase< BulkDensity, InorganicPercent, DuffDepth >::duffFfmcType ( ) const

inlinenodiscardconstexpr

Type of duff near the surface.

Returns: Type of duff near the surface

Here is the caller graph for this function:

◆ ffmcRatio()

template<int BulkDensity, int InorganicPercent, int DuffDepth>

static constexpr MathSize fs::fuel::FuelBase< BulkDensity, InorganicPercent, DuffDepth >::ffmcRatio ( )

inlinestaticnodiscardconstexpr

What fraction of the duff layer should use FFMC to determine moisture.

Returns: What fraction of the duff layer should use FFMC to determine moisture

Here is the call graph for this function:

Here is the caller graph for this function:

◆ inorganicPercent()

template<int BulkDensity, int InorganicPercent, int DuffDepth>

static constexpr MathSize fs::fuel::FuelBase< BulkDensity, InorganicPercent, DuffDepth >::inorganicPercent ( )

inlinestaticnodiscardconstexpr

Inorganic Percent (% / 100) [Anderson table 1].

Returns: Inorganic Percent (% / 100) [Anderson table 1]

Here is the caller graph for this function:

◆ probabilityPeat()

template<int BulkDensity, int InorganicPercent, int DuffDepth>

ThresholdSize fs::fuel::FuelBase< BulkDensity, InorganicPercent, DuffDepth >::probabilityPeat ( const MathSize mc_fraction ) const

inlinenodiscardoverridevirtualnoexcept

Calculate probability of burning [Anderson eq 1].

Parameters

mc_fraction moisture content (% / 100)

Returns: Calculate probability of burning [Anderson eq 1]

Implements fs::fuel::FuelType.

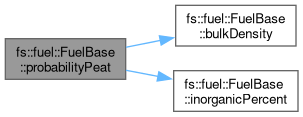

Here is the call graph for this function:

Here is the caller graph for this function:

◆ survivalProbability()

template<int BulkDensity, int InorganicPercent, int DuffDepth>

ThresholdSize fs::fuel::FuelBase< BulkDensity, InorganicPercent, DuffDepth >::survivalProbability ( const wx::FwiWeather & wx ) const

inlinenodiscardoverridevirtualnoexcept

Survival probability calculated using probability of ony survival based on multiple formulae.

Parameters

wx	FwiWeather to calculate survival probability for

Returns: Chance of survival (% / 100)

Implements fs::fuel::FuelType.

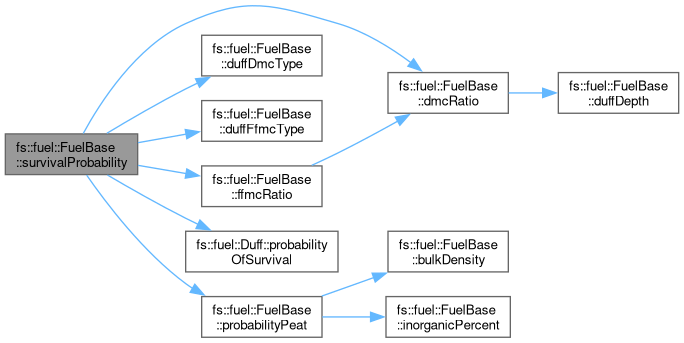

Here is the call graph for this function:

The documentation for this class was generated from the following file:

firestarr/src/cpp/FuelType.h
