fs::sim::MapObserver< T > Class Template Reference

An IObserver that tracks notification data using a GridMap. More...

#include <Observer.h>

Inheritance diagram for fs::sim::MapObserver< T >:

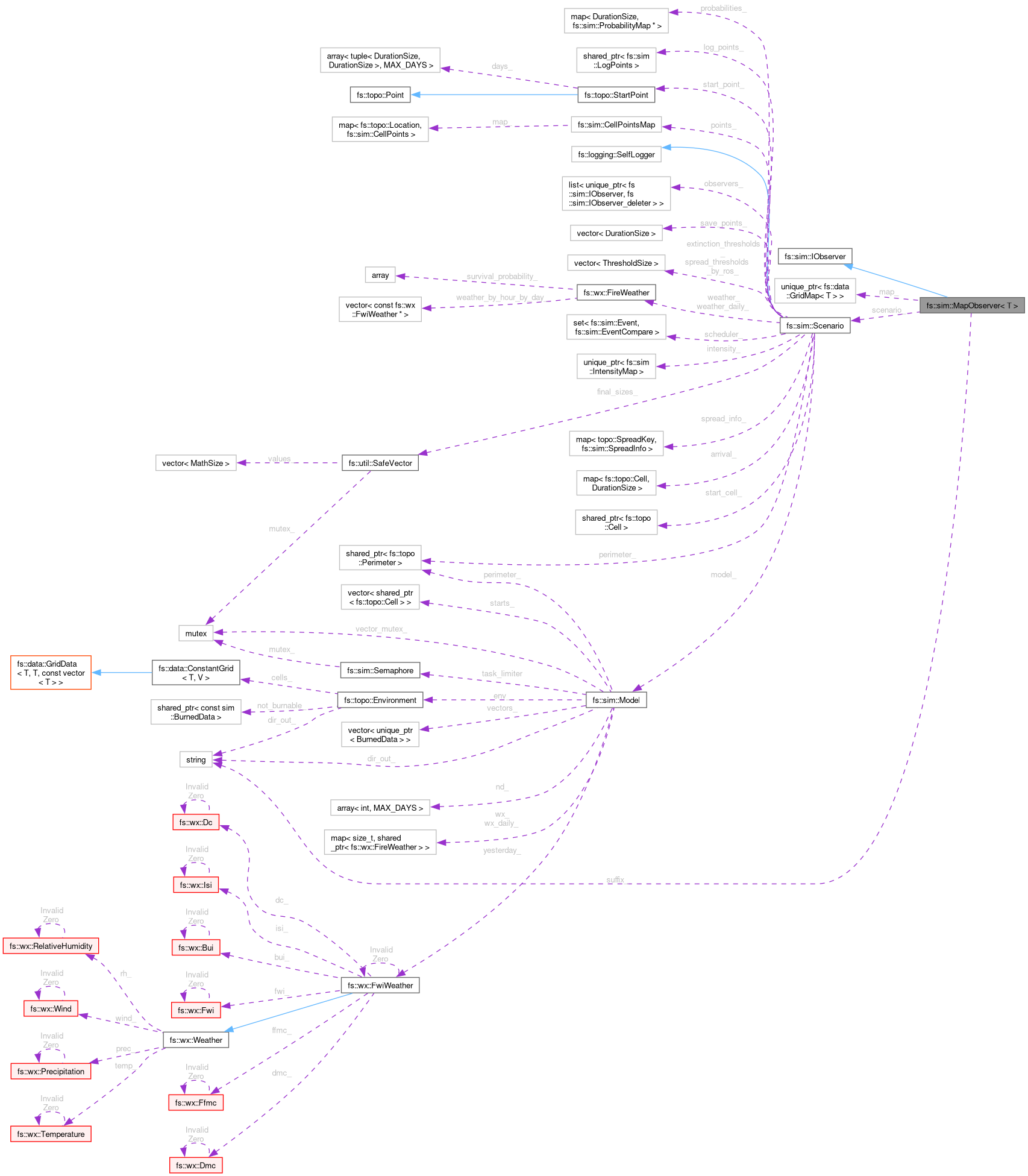

Collaboration diagram for fs::sim::MapObserver< T >:

Public Member Functions
	MapObserver (const MapObserver &rhs)=delete
	MapObserver (MapObserver &&rhs)=delete
MapObserver &	operator= (const MapObserver &rhs)=delete
MapObserver &	operator= (MapObserver &&rhs)=delete
	MapObserver (const Scenario &scenario, T nodata, string suffix)
	Keeps observations in a map.
virtual T	getValue (const Event &event) const =0
	Function that returns the value we care about regarding the Event.
void	handleEvent (const Event &event) override
	Handle given event.
void	save (const string &dir, const string &base_name) const override
	Save observations.
void	reset () noexcept override
	Clear all observations.
Public Member Functions inherited from fs::sim::IObserver
	IObserver (const IObserver &rhs)=delete
	IObserver (IObserver &&rhs)=delete
IObserver &	operator= (const IObserver &rhs)=delete
IObserver &	operator= (IObserver &&rhs)=delete

Protected Attributes
unique_ptr< data::GridMap< T > >	map_
	Map of observations.
const Scenario &	scenario_
	Scenario being observed.
string	suffix_
	Suffix to append to file during save.

Additional Inherited Members
Static Public Member Functions inherited from fs::sim::IObserver
static string	makeName (const string &base_name, const string &suffix)
	Make name to save file as.
Protected Member Functions inherited from fs::sim::IObserver

Detailed Description

template<typename T>
class fs::sim::MapObserver< T >

An IObserver that tracks notification data using a GridMap.

Template Parameters

T	Type of map that is being tracked

Constructor & Destructor Documentation

MapObserver()

template<typename T >

fs::sim::MapObserver< T >::MapObserver ( const Scenario & scenario, T nodata, string suffix )

inline

Keeps observations in a map.

Parameters

scenario	Scenario to observe
nodata	Value to use for no data
suffix	Suffix to use on saved file

Member Function Documentation

getValue()

template<typename T >

virtual T fs::sim::MapObserver< T >::getValue ( const Event & event ) const

nodiscardpure virtual

Function that returns the value we care about regarding the Event.

Parameters

event

Returns

Implemented in fs::sim::ArrivalObserver, fs::sim::IntensityObserver, and fs::sim::SourceObserver.

Here is the caller graph for this function:

handleEvent()

template<typename T >

void fs::sim::MapObserver< T >::handleEvent ( const Event & event )

inlineoverridevirtual

Handle given event.

Parameters

event

Event to handle

Implements fs::sim::IObserver.

Here is the call graph for this function:

reset()

template<typename T >

void fs::sim::MapObserver< T >::reset ( )

inlineoverridevirtualnoexcept

Clear all observations.

Implements fs::sim::IObserver.

save()

template<typename T >

void fs::sim::MapObserver< T >::save ( const string & dir, const string & base_name ) const

inlineoverridevirtual

Save observations.

Parameters

dir	Directory to save to
base_name	Base file name to save to

Implements fs::sim::IObserver.

Here is the call graph for this function:

---

The documentation for this class was generated from the following file:

• firestarr/src/cpp/Observer.h
